Edge Computing Server

AEWIN Technologies Co., Ltd.

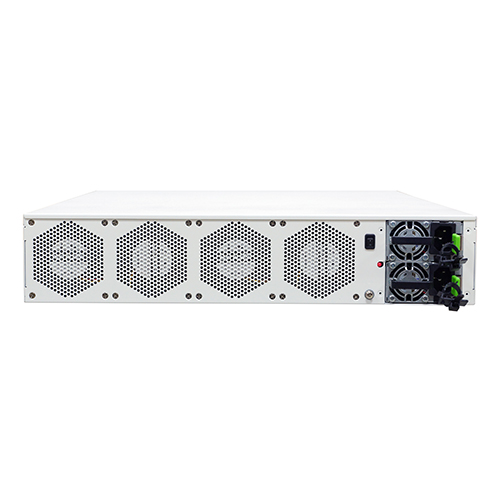

SCB-1921C

2U Rackmount Dual 2nd Gen Intel® Xeon® Scalable Processors and Intel® C621/C624/C627 PCH edge computing server, support DDR4 RDIMM up to 1.5TB, 2x PCIe x16 slot for GPU, 4x Expansion Module bays , 2x 2.5” SATA HDD hot-swappable, IPMI, USB 3.0, 2x 1GbE, 1x Console, CF/mSATA/miniPCI-E, M.2, Redundant PSU.

Overview
Specifications
Download
Options
Key features
  • Support Dual 2nd Gen Intel® Xeon® Scalable Processors, LGA3647
  • 24x DDR4 RDIMM memory, up to 2933 MHz
  • Support Intel QAT (by SKU)
  • 2x PCIe x16 slot for GPU, 4x Expansion Module bays
  • 2x 2.5” SATA, 1x M.2 2280, 1x mSATA
  • Optional IPMI
Status : available

Specifications
Processor System
CPU
Support Dual 2nd Gen Intel® Xeon® Scalable Processors, LGA3647
Chipset
Intel C621/C624/C627 PCH
System Bus
UPI up to 11.2GT/s
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 24 DIMMs (8 channels per CPU, 1x DIMM per channel, 8 DIMMs per CPU)
-- ECC & Registered RDIMM:DDR4 2933 MHz memory, up to 128GB per DIMM
-- LRDIMM:DDR4 2933 MHz, up to 128GB per DIMM
Capacity
ECC RDIMM / LRDIMM up to 1.5 TB total
Expansion
Onboard Expansion Slots
4x PCIe Gen4 x8 slots for NIC module
2x PCIe x16 slot for GPU
I/O
USB
2x external USB 2.0 port
1x internal USB 3.0 pin header
Serial
1x RJ45 Console port (COM1)
2x internal pin header (COM2 & COM3)
Ethernet
GbE Ethernet
2x RJ45 1GbE portsin systemfront
LAN Bypass
Implement by LAN modules
Storage
SATA
Support 2x 2.5” SATA HDD or SSD
mSATA
2x M.2 2280 socket (M-Key)
Ext. Storage
Either for CompactFlash/mSATA/miniCPI-E (Co-Layout)
Power Supply
Watt
850W/1300W/1600W Redundant power supply (CRPS), 12V output / RoHS
Mechanical and Environment
Form Factor
2U Rackmount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm(W) x 600 mm(D) x 88mm(H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
19 kg
Certification
CE/FCC
Packing List
1x SCB-1921 MEC unit
2x power cord
1x Ethernet/Console cable
Manual, Quick Installation Guide, Utilities & Drivers
