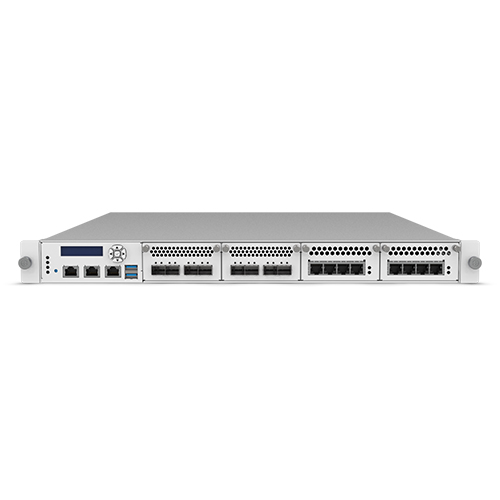

SCB-1833

1U rack-mount system with AMD® Ryzen™ 3000 series CPU with X570 FCH, 4x DDR4 3200MHz DIMM, 2x USB2.0, 2x SATA III, 1x mSATA/CF, 1x mPCIe, TPM 2.0 / Trusted secure boot module (optional), IPMI with dying gasp (optional), 4x Network Expansion module

Overview
Specifications
Download
Options
Key features
  • Support 3rd generation AMD® Ryzen™ processors
  • Support 2x PCIe Gen4 Expansion Modules which support 128Gb bandwidth and 2x PCIe Gen3 Expansion Modules
  • Support TPM/trust secure boot (BIOS recovery) & IPMI with Dying Gasp feature
Status : available

The SCB-1833 is a 1U Rack-Mount high-performance networking sys tem, that supports a single AMD ® Ryzen™ 3000 series CPU with X570 FCH. It is based on 7nm Zen2 architecture to deliver breakthrough computing performance with support for CPU up to 8 cores / 16 Threads with PCIe Gen4 support.

The SCB-1833 supports 4x DDR4 ECC DIMM (up to 3200MHz) in dual channels and maximum memory capacity up to 128GB. The SCB-1833 can support up to 4 NIC modules, support multiple Ethe rnet module bays for flexible port configuration, such as 1/10/ 25/40/100 Gigabit fiber or copper with optional Bypass function. The maxi mum capable Ethernet port is up to 32x 1GbE ports. SCB-1833 sup ports standard FHHL PCIe slot for RAID or others PCIe device usage in rear.

The strong IO elements of SCB-1833 include two management Ether net port (one for management, another for optional IPMI functio n), optional TPM2.0 or Trusted Secure Boot module, a console port, two USB 3.0 ports, a Graphic LCD module with keypad (5 key), LE Ds for power/ HDD/ 2 x GPIO, and one miniPCIe slot for WiFi or other m odules. In addition, the SCB-1833 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one mSATA/CF slots for basic storage applica tion.

Specifications
Processor System
CPU
AMD® Ryzen™ 3600 / 3700X
Chipset
X570
BIOS
AMI® UEFI
Memory
Technology
DDR4 3200MHz ECC DIMM
Capacity
128GB (4x DIMM)
Expansion
Front side
4x AEWIN Network Expansion Module
(2x PCIe Gen3 x8 & 2x PCIe Gen3 x4)
Rear side
1x PCIe x8 slot (x4 signal)
Inside
1x mPCIe(SCB-1826B only)
Ethernet
GbE Ethernet
2x 1GbE RJ45
LAN Bypass
-
Storage
SATA
1x 3.5”or 2x 2.5” HDD/SSD
mSATA
(CF co-lay mSATA)
CompactFlash Socket
1x CompactFlash Socket
I/O
USB
2x USB 2.0 &2x USB2.0 pin header &
2x USB 3.0 pin header
Serial
1x console & 1x LCM
Power Supply
Watt
250W ATX
Mechanical and Environment
Form Factor
1U Rack-mount
LED
2x Status LED(Green / Red via programmable GPIO)
1x Power LED (Yellow)
1x HDD LED (Green)
Dimension (W x D x H)
438mm (W) x 510mm (D) x 44m (H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
9kg
Certification
CE / FCC / LVD
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
OT004A
Trusted Secure Boot to restore defected M/B BIOS
R492A
IPMI module with dying gasp
AEWIN NIC
All AEWIN Expansion Module series
