Mainstream Network System

AEWIN Technologies Co., Ltd.

SCB-1826

1U Rack-mount Single Intel® Xeon® W and 10th/11th Gen Core™ Processors networking System, support DDR4 2666MHz up to 128GB, 4x PCIe slots for Network Expansion Module, 2x USB2.0, 2x 1GbE, 1x Console, 1x M.2 2280/2242 or 1x CF , IPMI or mPCIe, PCIe x16 slot, Redundant / Single PSU

Overview
Specifications
Download
Options
Key features
  • Support Single Intel® Xeon® W and 10th/11th Gen Core™ Processors, LGA1200
  • 4x DDR4 (ECC) UDIMM memory, up to 2933 MHz
  • 2x RJ45 1GbE ports, 4x Expansion Module bays (2x PCIe x8 & 2x PCIe x4)
  • 1x 3.5”or 2x 2.5” SATA, 1x M.2 2242/2280 or 1x mPCIe and 1x CF
  • Optional IPMI, AEWIN TSB module
Status : available

The SCB-1826 is a 1U Rack-Mount high-performance networking system, that supports a single Intel® Xeon® W and 10th/11th Gen Core™ processors for IoT applications. It is based on Intel’s new 14nm Comet Lake architecture to deliver breakthrough computing performance. CPU up to 10 cores / 20 Threads, 20MB cache, and maximum turbo frequency of 4.8GHz. Platform is powered by the W480E chipset.

The SCB-1826 supports 4x DDR4 ECC DIMM (up to 2933MHz) in dual channels and maximum memory capacity up to 128GB. With total 24 PCI Express lanes, the SCB-1826 can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration, such as 1/10/25/40/100Gigabit fiber or copper with optional Bypass function. The maximum capable Ethernet port is up to 32x 1GbE ports. SCB-1826 supports standard FHHL PCIe slot for RAID or others PCIe device usage in rear.

The strong IO elements of SCB-1826 include two management Ethernet port (one for management, another for optional IPMI function), a console port, two USB 2.0 ports, a Graphic LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO. In addition, the SCB-1826 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one M.2 M key 2280/2242 slots for basic network storage application.

Specifications
Processor System
CPU
Single Intel® Xeon® W and 10th/11th Gen Core™ Processors, LGA1200
Chipset
W480E
System Bus
DMI 3.0 x 4
BIOS
AMI® UEFI
Memory
Technology
DDR4 UDIMM up to 2666 MHz
Capacity
128GB (4x DIMM)
Expansion
Front side
4x AEWIN Network Expansion Module
(2x PCIe Gen3 x8 & 2x PCIe Gen3 x4)

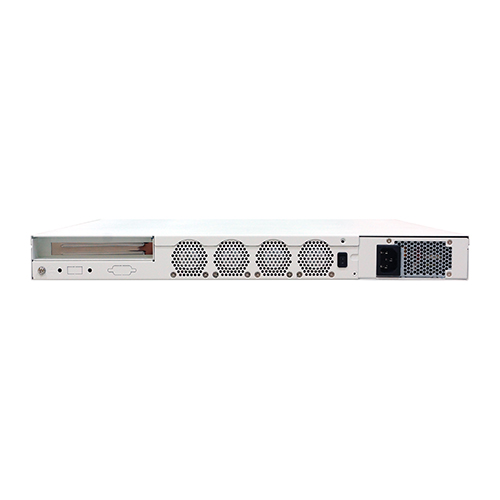

Rear side
1x PCIe x8 slot (x4 signal)
Inside
1x mPCIe(SCB-1826B only)
Ethernet
GbE Ethernet
2x 1GbE RJ45
LAN Bypass
-
Storage
SATA
1x 3.5”or 2x 2.5” HDD/SSD
M.2
1xM Key 2242/2280 (SCB-1826A only)
CompactFlash Socket
1x (SCB-1826B only)
I/O
USB
2x USB 2.0
Serial
1x console & 1x LCM
Power Supply
Watt
300W Redundant ATX PSU(SCB-1826A)
250W Flex ATX PSU(SCB-1826B)
Mechanical and Environment
Form Factor
1U Rack-mount
LED
2x Status LED(Green / Red via programmable GPIO)
1x Power LED (Yellow)
1x HDD LED (Green)
Dimension (W x D x H)
438mm (W) x 510mm (D) x 44m (H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
9kg
Certification
CE / FCC / LVD
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
OT004A
Trusted Secure Boot to restore defected M/B BIOS
R492A
IPMI module with dying gasp
AEWIN NIC
All AEWIN Expansion Module series
