Key features

• Support Single Inte Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest-SP), LGA-4710
• 8x DDR5 R-DIMM, up to 6400MHz
• Support Intel QAT
• 2x 10GbE RJ45, 8x PCIe Slots
• 1x 1GbE MGMT RJ45 shared with IPMI
• 12x hot-swapable 3.5”/2.5” SAS/SATA/NVMe, 2x 2.5” hot-swappable NVMe, 2x M.2 M Key
• 1x TPM2.0

Status : available

The BIS-5132-2U is a versatile 2U server powered by a single Inte Xeon 6 Scalable Processor (Granite Rapids SP/Sierra Forest SP) which provides remarkable performance with up to 86 performance cores or 144 efficiency cores. It features eight channels of DDR5 RDIMM, supporting speed up to 6400 MHz.

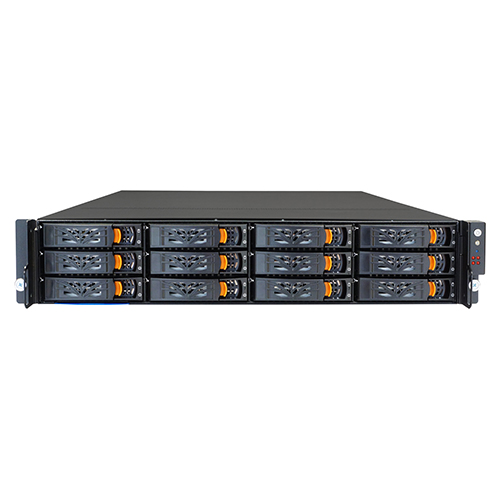

Leveraging up to 136 PCIe5.0 lanes provided by Intel Xeon 6 Granite Rapids SP R1S, the BIS-5132 offers outstanding expandability with up to eight PCIe slots, ideal to accommodate high-end GPU accelerators and high-throughput network interface cards. In addition to 12x 3.5-inch drive bays, the system supports two hot-swappable 2.5-inch NVMe SSDs and two M.2 slots for boot drives or added storage.

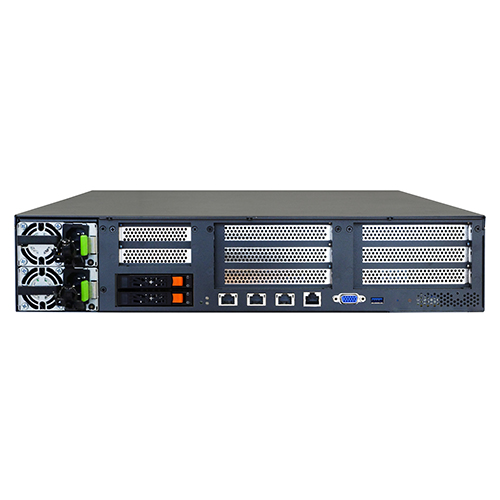

Designed for maximum flexibility, the BIS-5132-2U provides a rich set of I/O options, including two 10GbE RJ45 ports, one 1GbE management port, an RJ45 console port, USB 3.1, VGA, and full LED indicators for power, HDD/SSD status, and user-defined GPIOs to support diverse applications.
