AEWIN

Key features

• Support Dual Inte Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest), LGA-4710
• 16x DDR5 R-DIMM, up to 6400MHz
• Support Intel QAT
• 1x GbE RJ45 IPMI port, 4x 10GbE RJ45 ports, 8x PCIe Gen5 slots, 1x OCP3.0 PCIe Gen5 slot
• 12x hot-swapable 3.5” SATA/2.5” NVMe, 2x M.2 M Key
• 1x TPM2.0

Status : available

BIS-5231-2U is a 2U, 12-bay storage server/general purpose server powered by Dual Inte Xeon 6 Scalable Processors (Granite Rapids-SP/Sierra Forest). The new generation platform provides remarkable performance through a multi-core CPUs up to 86 P-cores or 144 E-cores.

BIS-5231-2U is equipped with 16x channels of DDR5 RDIMM slots with speeds up to 6400MHz. It supports four FH Single Width PCIe Gen5 x16 slots with length support up to 200mm, two FHHL Single Width PCIe Gen5 x16 slots, two LP PCIe Gen5 x8 slots, and one OCP 3.0 PCIe Gen5 x16 slot for various kinds of expansion modules including advanced GPU cards, high throughput NICs, storage adapter cards, etc.

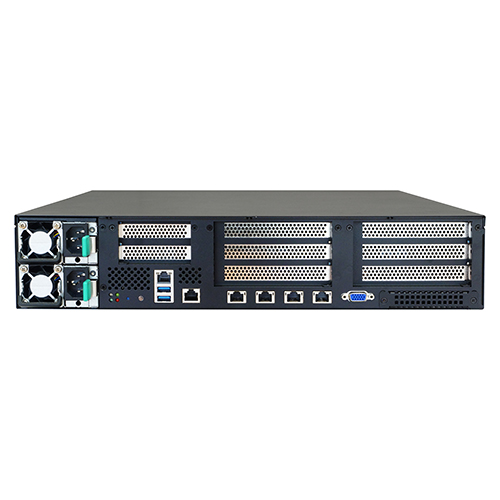

In addition to outstanding scalability and flexibility, the BIS-5231-2U incorporates comprehensive I/O including one 1GbE RJ45 IPMI port, four 10G RJ45 ports, one RJ45 Console port, one VGA port, two USB 3.1, and two M.2 slots which make it ideal for a wide variety of applications.
