Hybrid Storage Server

AEWIN Technologies Co., Ltd.

BIS-5204

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

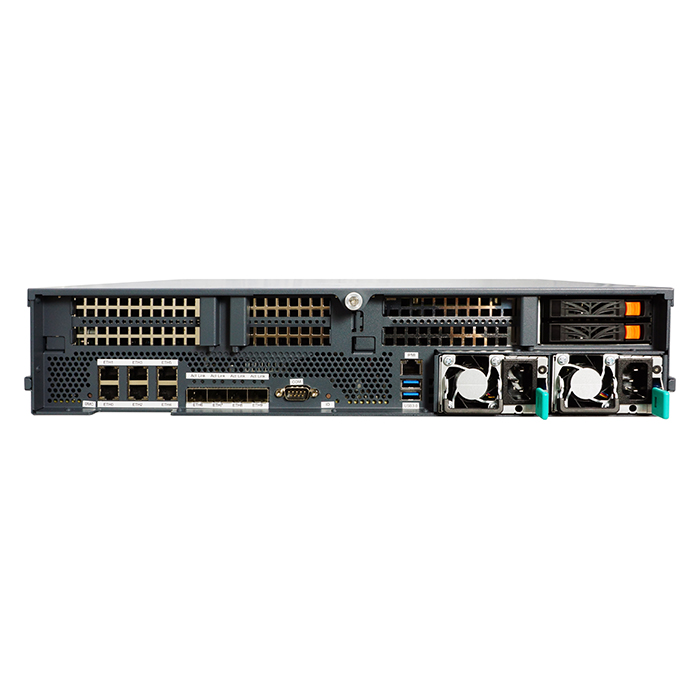

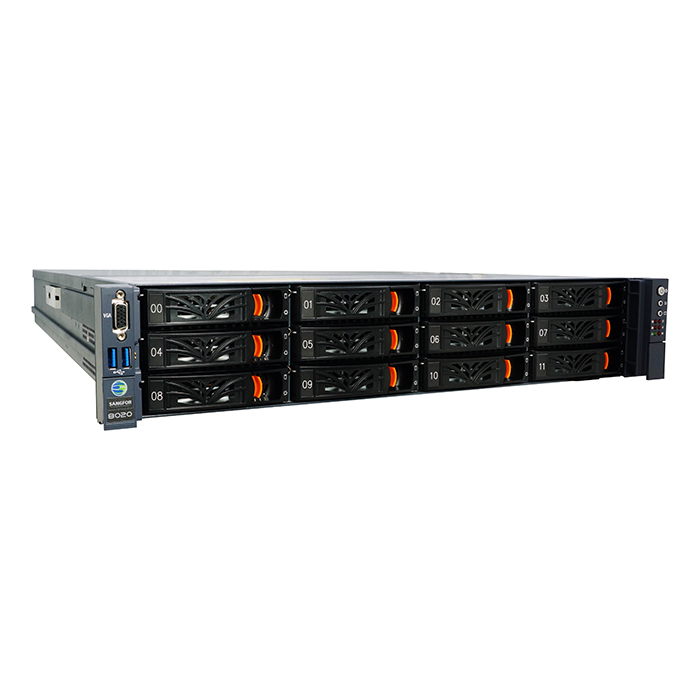

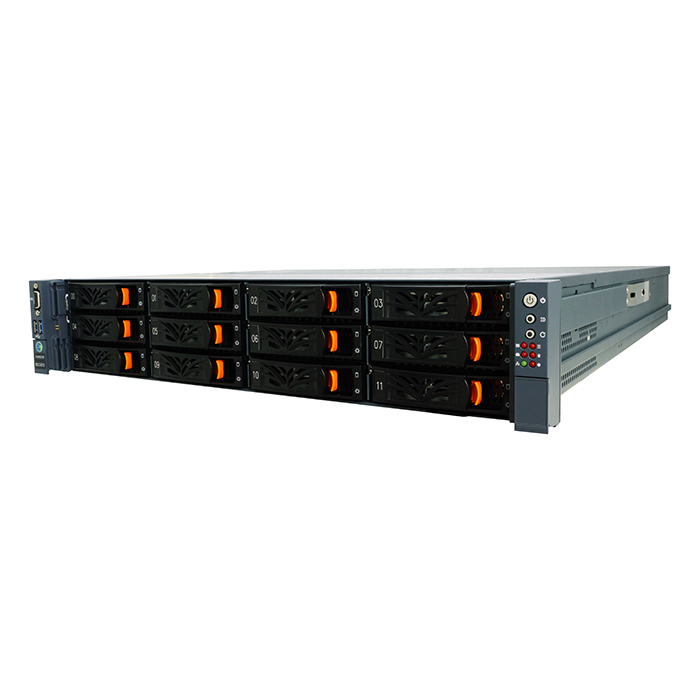

BIS-5204 is a 2U/12Bays Hybrid Storage System with Dual Intel® Xeon® Scalable Processor Platform.

Overview
Specifications
Download
Optional
Key features
  • 2U/12Bays Hybrid Storage Server System
  • Dual Intel® Xeon® Scalable Processors Platform
  • (24)DDR4 ECC RDIMM/LRDIMM Memory slots
  • (4)10GbE SFP+ ports + (6) 1GbE Base -T
  • (1) PCIe x8 Storage Mezzanine for AEWIN RAID card
  • Support (2) GPGPU Card for AI application
  • 80 PLUS Platinum Certified 850W/1600W RSPU
Status : available

BIS-5204 is a 2U/12Bays Hybrid Storage System with Dual Intel® Xeon® Scalable Processor Platform.

Specifications
Server System
Form Factor
2U Rackmount frame enclosure
Processor
Dual Sockets, Support Intel® Xeon® 41xx/51xx/61xx/81xx CPU Up to TDP 165W
Chipset
Lewisburg
Memory
(24)DDR4 ECC-RDIMM/LRDIMM/3DS LRDIMM 2666 Up to 3TB using 128GB DIMMs
Storage
(12) 3.5'' Hot-swap SATA/SAS HDD bays - S3 SKU
(24) 2.5'' Hot-swap SATA/SAS SSD bays - S2 SKU
(2) 2.5'' Hot-swap SATA SSD bays
(2) PCIE M.2 NVMe
PCI Expansion Slots (Main Board)
(4) FHFL PCIe G3x16 slots (w/x8 link) - S3 SKU
(2) FHFL PCIe G3x16 slots (w/x16 link) - S2 SKU
(2) HHFL PCIe G3x8 slots (w/x8 link)
(1) OCP Storage mezz slot (w/x8 link) for RAID card
Network
(4) 10GbE SFP+ ports
(4) 1GbE BaseT (Intel i350)
(2) 1GbE BaseT (Intel i210)
(1) Dedicate GbE for IPMI/KVM
VGA&IPMI 2.0
ASPEED AST2500
IPMI V2.0 compliant w/IKVM
System Power (80+ Platinum Certified)
CRPS, 1+1 Redundant (AC to DC)(850W)
CRPS, 2+0 Combined Power(850W)
Cooling System
(5) 8038 High Performance FANs
Storage
(12) 3.5 Hot-swap SATA/SAS bays
(2) M.2 NVMe 2280 (w/x4 link)
SKU
BIS-5204-S3
BIS-5204-S2
Dimension
438mm(W) x 750mm(D) x 87 mm(H)
(17.2"W x 29.5"D x 3.4"H)
Target Application
High End Enterprise Server
High End Networking Computing
High Performance Computing
Virtualization
Cloud Computing
