Hybrid Computing Server

AEWIN Technologies Co., Ltd.

BIS-5203

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

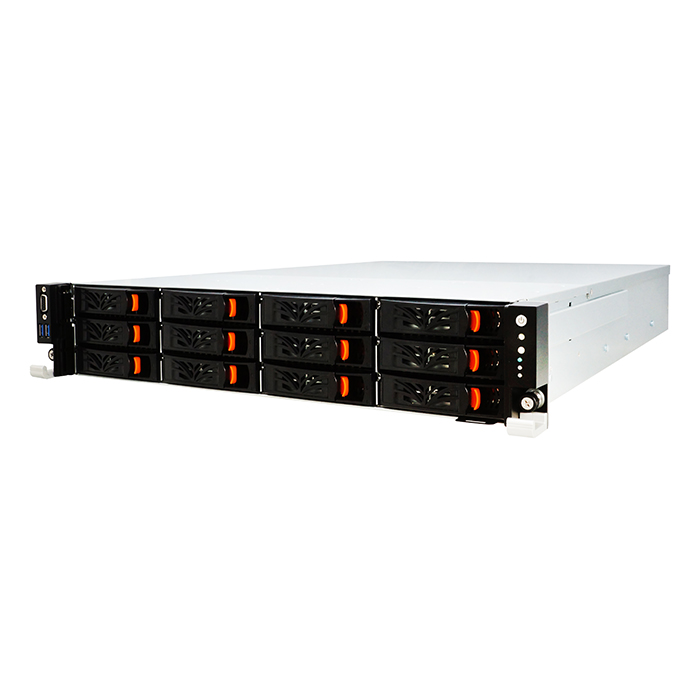

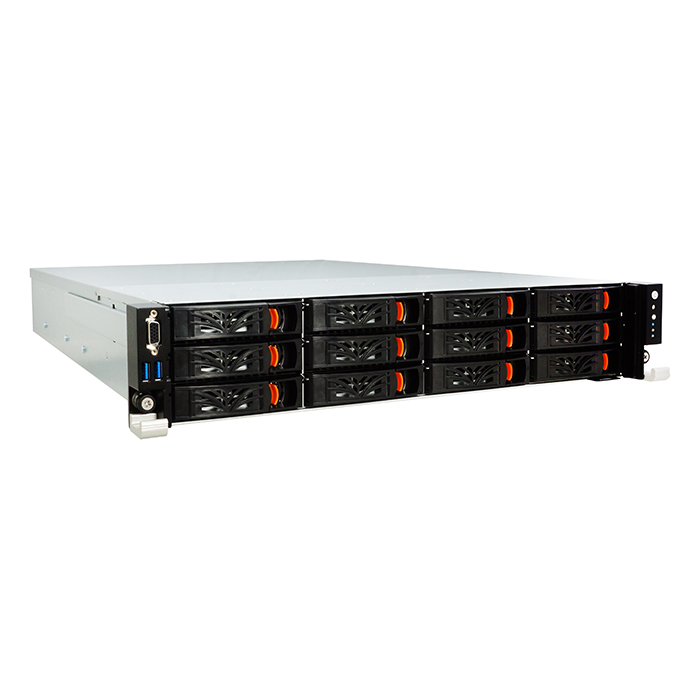

Trusted Platform Control Server, BIS-5203 is a 2U/12Bays TPCS System with Dual Intel® Cascade Lake Xeon® Scalable Processor Platform.

Overview
Specifications
Download
Optional
Key features
  • 2U/12Bays TPCS System
  • Dual Intel® Xeon® Scalable Processor Platforms
  • (12)DDR4 ECC-RDIMM/LRDIMM/3DS LRDIMM 2133, 2400, 2666
  • (4+2) 1G BaseT LAN ports / (4) 10GbE SFP+
  • 80+ Platinum Certified 550W/850W CRPS
  • Support AEWIN Trusted Platform Control Module
Status : available

Trusted Platform Control Server, BIS-5203 is a 2U/12Bays TPCS System with Dual Intel® Cascade Lake Xeon® Scalable Processor Platform.

Specifications
Server System
Form Factor
2U Rackmount frame enclosure
Processor
Dual Sockets, Support Intel Cascade Lake Xeon 6XXX/8XXX CPU TDP 70W~105W with 6025 SKU
Support Intel Cascade Lake Xeon 6XXX/8XXX CPU TDP 115W~165W with 8038 SKU
Chipset
Lewisburg
Memory
(12)DDR4 ECC-RDIMM/LRDIMM/3DS LRDIMM 2133, 2400, 2666
2666 up to 1.5TB using 128GB DIMMs
Storage
(12) 3.5'' Hot-swap SATA/SAS HDD bays - S3SKU
(24) 2.5'' Hot-swap SATA/SAS SSD bays - S2 SKU
(2) M.2 NVMe
PCI Expansion Slots (Main Board)
(3) HHHL PCIe G3x16 slot (w/x16 link)
(1) OCP Storage mezz slot (w/x8 link) for RAID card
(1) OCP mezz slot (w/x8 link) for TPCM card

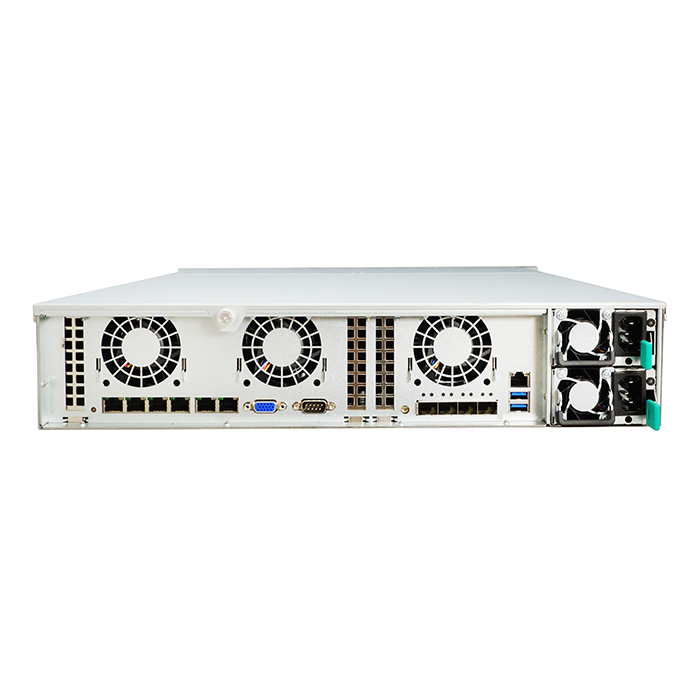

Network
(4) 10GbE SFP+ ports
(4) 1GbE BaseT (Intel i350)
(2) 1GbE BaseT (Intel i210)
(1) Dedicate GbE for IPMI/KVM
VGA&IPMI 2.0
ASPEED AST2500
IPMI V2.0 compliant w/IKVM
System Power (80+ Platinum Certified)
CRPS, 1+1 Redundant (AC to DC)
CRPS, 2+0 Combined Power 850W
Cooling System
(2)Active CPU Heatsink
(3)SUNON 6025 High Performance FANs-6025 SKU

(2) 2U Passive CPU Heatsink
(4) SUNON 8038 High Performance FANs-8038 SKU
Dimension
438mm(W) x 600mm(D) x 87 mm(H)
(17.2W'' x 23.6''D x 3.4''H)
Target Application
High End Enterprise Server
High End Networking Computing
Virtualization
Cloud Computing
