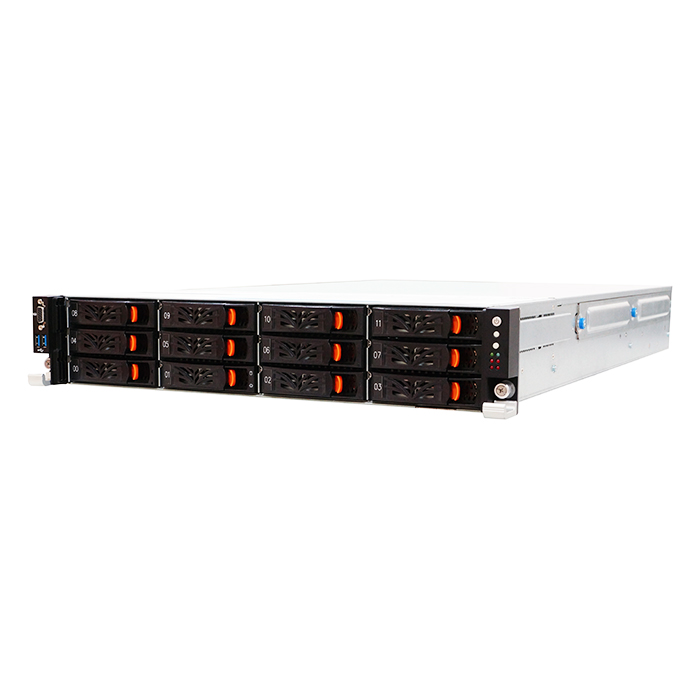

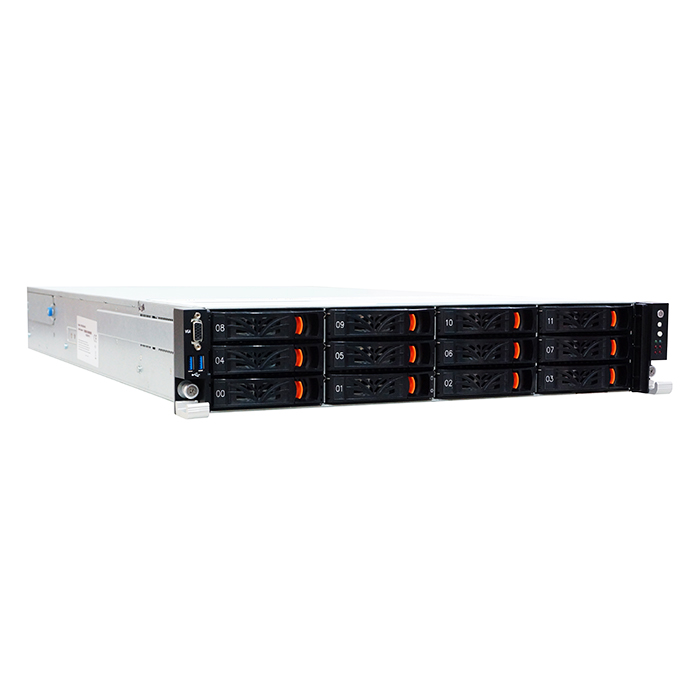

Hybrid Computing Server

AEWIN Technologies Co., Ltd.

BIS-5202

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

Hybrid computing / storage server

Overview
Specifications
Download
Optional
Key features
  • Dual Intel® Cascade Lake Xeon® Scalable Processors
  • Up to 205W TDP
  • (24)RDIMM/LRDIMM ECC DDR4 Memory slots
  • (2) 1GbE Base-T
  • (12+4) 3.5" or (26+12) 2.5'' SAS/SATA HDD
  • (1) PCIe x8 Storage Mezzanine for SAS RAID card
  • (1) PCIe x8 TPCM Mezzanine for Security Boot
  • (1) PCIe x16 NIC Mezzanine for 10/25/50/100G NIC card
  • Up to (2)GPGPU cards Supported
Status : available

Hybrid computing / storage server

Specifications
Server System
Form Factor
2U Rackmount frame enclosure
Processor
-Dual LGA3647 Sockets
-Intel® Cascade Lake Xeon® Scalable Processors
Chipset
Intel® C621 chipset
Memory
(24) DDR4 ECC-RDIMM/LRDIMM, 2666/2400MHz
PCI Expansion Slots (Main Board)
(3) PCIe G3x16 slots (w/x16 link)
(1) OCP MEZZ slot (w/x8 link) for RAID card
(1) OCP MEZZ slot (w/x8 link) for TPCM card
Network
(2) 10/100/1000 LAN ports (2 x Intel NHI350AM2) - Option
(1) Dedicate RJ45 for IPMI
VGA&IPMI 2.0
ASPEED AST2500
IPMI V2.0 compliant w/IKVM
System Power (80+ Platinum Certified)
CRPS, 1+1 Redundant (AC to DC)
CRPS, 2+0 Combined Power 850W
Cooling System
(5) 8038 High Performance FANs
Storage
(12) 3.5 Hot-swap SATA/SAS bays
(2) M.2 NVMe 2280 (w/x4 link)
I/O

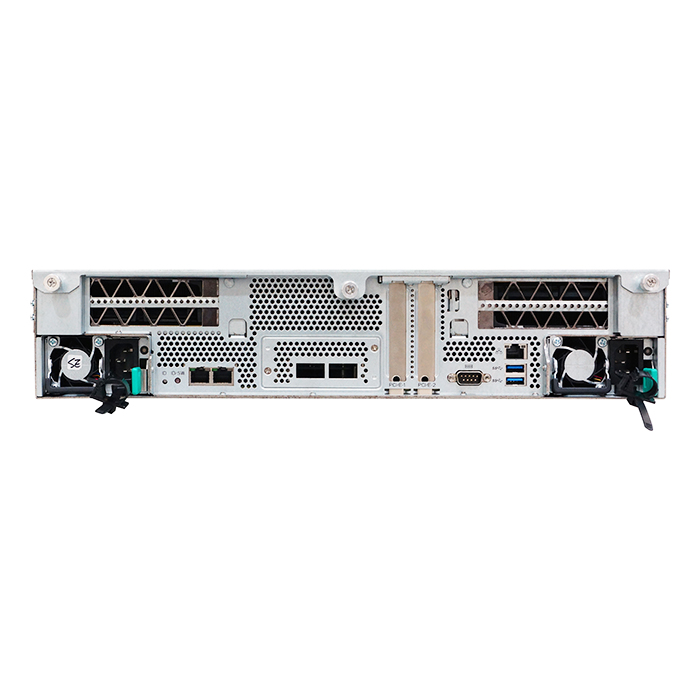

-(1) COM port/(2) USB3.0/(1)RJ45 for IPMI/ (1) ID Button w/LED/(2) GbE LAN-Rear Side
-(2) USB 3.0 /(1) VGA -Front Side
-(1)Power Green LED & Button /(1)Re-set Button/ (1)ID Blue LED & Button/(1) System FAIL Amber LED/ (1)TPCM Green LED‒Front side
Front Bezel
2U Front Bezel with lock for Security
Dimension
438 x 750 x 88 mm
Certification
CE/FCC/CCC/ROHS
