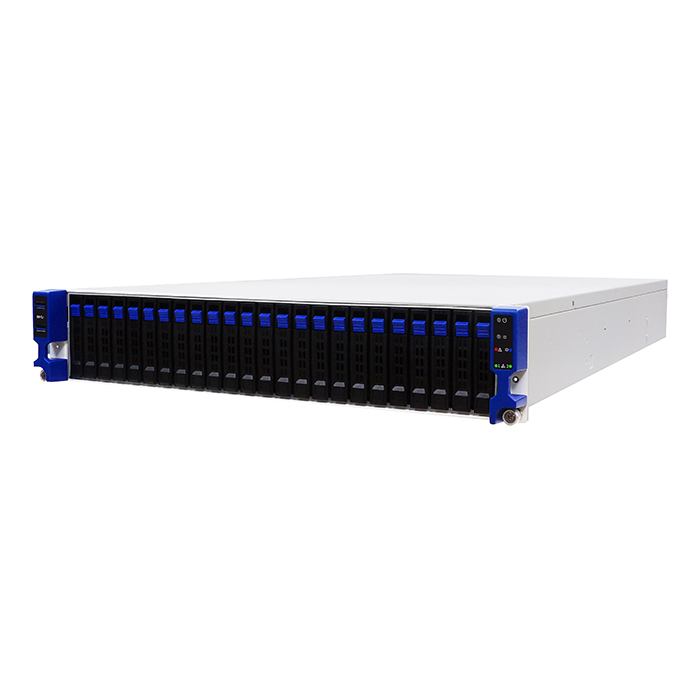

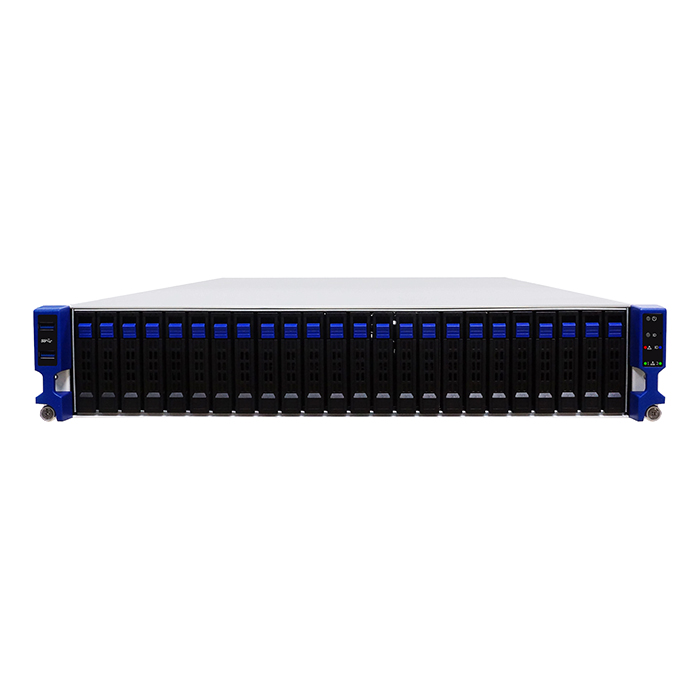

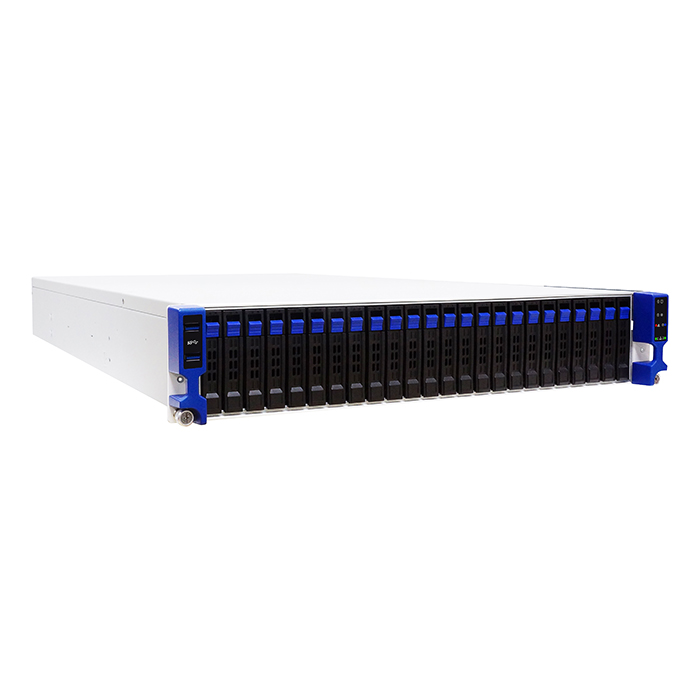

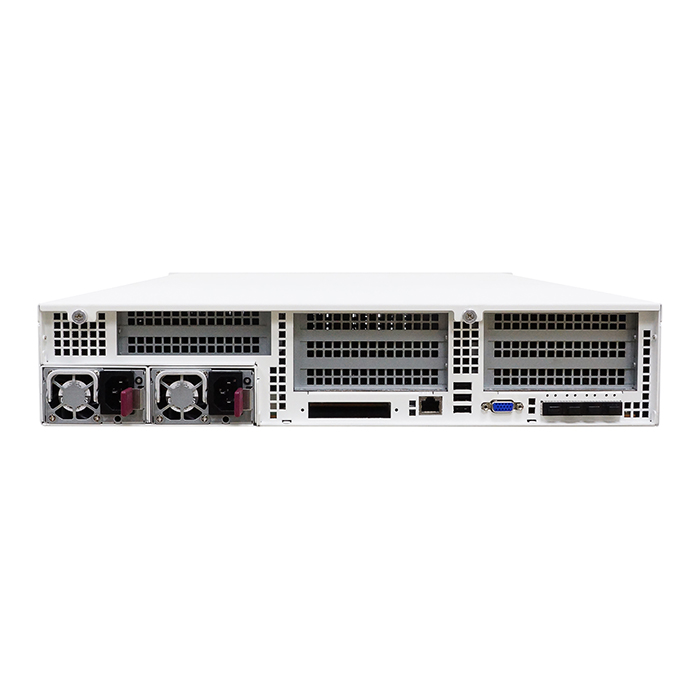

Hybrid Computing Server

AEWIN Technologies Co., Ltd.

BIS-5201

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

Intel Xeon Porcessor Scalable Family -Based Server Platform

Overview
Specifications
Download
Optional
Key features
  • Supports up t o (2)GPGPU cards
  • Dual Intel® Xeon® Scalable Processors
  • (24)RDIMM/LRDIMM ECC DDR4 DIMM slots
  • (4)10GbE SFP+ ports
  • (24+2) NVMe S SD or (12) 3.5’’ HDD
  • 80 PLUS Platinum 1300W r edundant PSU
Status : available

Intel Xeon Porcessor Scalable Family -Based Server Platform

Specifications
Chassis
Form Factor (D x W x H)
2U Rackmount, 750 x 439 x 89mm
Motherboard
455mm x 425 mm
Processor
Type
Dual LGA 3647 Sockets
ActiveCores/Frequency
Support Intel® Xeon® Scalable Series
TDP
CPU w/TDP up to 205W
Chipset
PCH
Intel C624/ C628
Memory
Type/Q'ty /Speed
(24)DDR4 ECC-UDIMM/RDIMM/LRDIMM, 2600
Total Capacity
Up to 3TB using 128GB DIMMs
Memory channel
6 Channels per CPU
Memory voltage
1.2V
Storage
External Drive Bay
Front:
(24) Bays 2.5'' NVMe SSD or
(12) Bays 3.5'' (2.5'' compatible) SAS3 12Gb/s
Internal SSD (Optional)
(2) M.2 NVMe SSD (PCIeG3x4)
Graphic
Connector type
D-Sub 15-pin
Resolution
Up to 1920x1200
Chipset
Aspeed AST2500
PCIe Expansion slots
Type/(Q'ty)
(2) FHFL PCIe G3x8 slots (w/x16 link)
(1) OCP LAN mezz slot (w/x16 link) for NIC Card
(8) Oculink (w/x4 link)
Indicator & I/O ports
Power Button
(1) Power Button
Reset Button
(1) Reset Button
ID LED
(1) ID LED, Blue
System Fault LED
(1) Fault LED, Red
VGA
(1) Standard D-Sub
USB
(2) USB3.0
(3) USB2.0
ID LED
(1) ID LED, Blue
LAN (on Mezz. card)
10GBASE-T 2ports/10Gbe 2ports/25Gbe 2ports
LAN (on M/B)
(4) 10GbE SFP+
(1) 1GBASE-T port dedicated for IPMI
PSU
Input Range/Frequency
100 - 140V AC/10.8A / 200-240V AC/10.8A /50~60Hz
Output Watts/Efficiency
80 PLUS Platinum 1300W redundant PSU
Redundancy
1+1
FAN
Type/Speed/Q'ty
(4)8038 High Performance System FAN
RoHS
RoHS 6/6 Compliant
Yes
Regulation
FCC (DoC)
Class A
CE (DoC)
Yes
Operating Environmen
Otperating Temp.
10° C ~ 35° C
Non-operating Temp.
-40° C ~ 70° C
Package Contains
Motherboard
(1) ZIS-5201 Motherboard
Manual
(1) Web User's manual / (1) Quick Installation Guide
