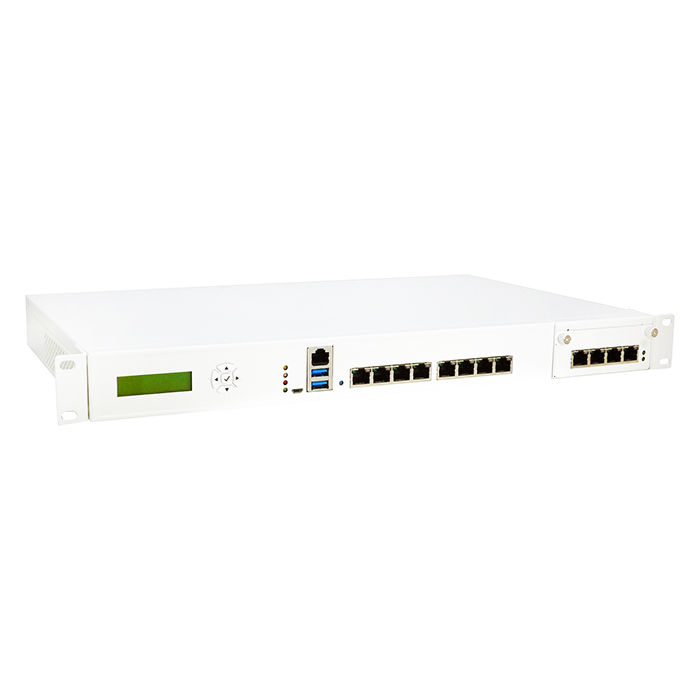

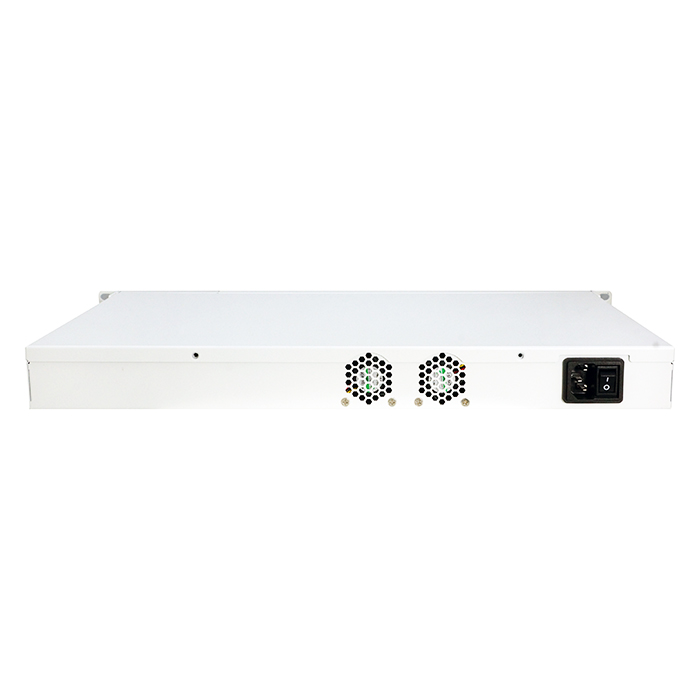

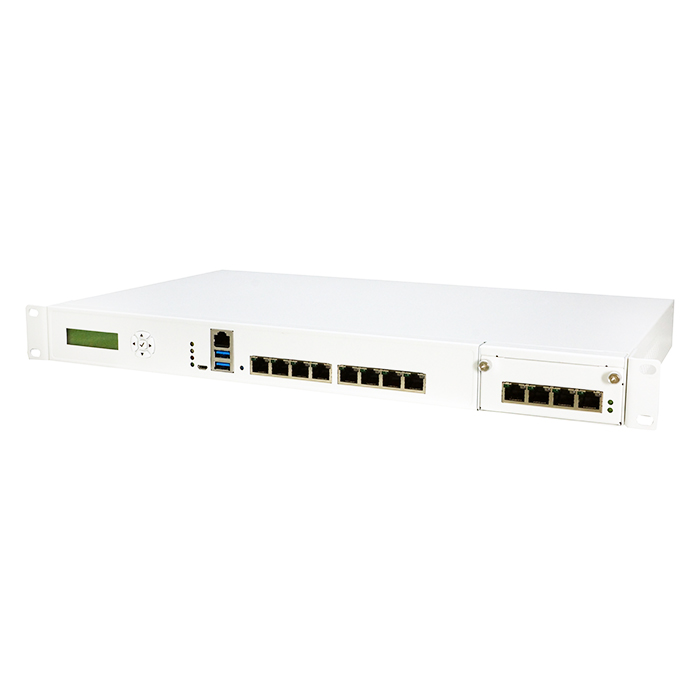

SCB-7907

1U Rack-Mount Network Appliances, Intel® Atom C3000 (Denverton-NS) Processor Network System, eight Copper GbE, DDR4, mSATA, CF, 1x PCIe x4 Slot , Bypass

Overview
Specifications
Download
Options
Key features
  • Intel® Atom C3000 (Denverton-NS) Processor
  • DDR4 ECC 1866/2133 MHz memory, max support 32GB
  • Max 12 GbE ports support. (Expansion-card R469)
  • 2 pairs Bypass
  • 1x PCIe x4 for (4 PCIex1)
  • Intel® Quick Assist for Cryptographic Hardware Acceleration
Status : available

The SCB-7907 is a 1U rack-mount hardware platform designed for network service applications. Supporting the next generation Intel® Denverton-NS ™ Processor. With 2C/4C Cores ; This new generation platform provides highly CPU computing power that CPU cores up to 16 cores, supporting total with 20 PCIe lanes for flexible both network interface modules expansion . The SCB-7907 is enhancement in computing performance, system responsiveness with Intel® Denverton-NS™ Processor, supporting four DDR4 ECC SODIMM (up to 2133 MHz) and maximum memory capacity is up to 32GB. SCB-7907 is able to support 1 PCIe x4 (for 4PCIe x1) ,1x RJ45 Console port. 2x USB 3.0, and LEDs for Power/HDD/Bypass / Status and 2 pairs Bypass LAN port function. SCB-7907 supports 1 x mSATA , CF slot; 1 x 2.5" SATA HDD and for basic network storage application.

Specifications
Processor System
CPU
Intel® Atom C3000 (Denverton-NS) Processor
BIOS
AMI® UEFI BIOS
Memory
Technology
ECC DDR4 1866 / 2133 MHz SODIMM memory
Capacity
Up to 32GB
Expansion
PCI-E slot
1 x PCIe x4 slot for Ethernet module (Optional riser card)
Ethernet
GbE Ethernet
LAN1~4: Intel I210-AT via PCIex1
LAN5~8: Marvell 88E1543 via SGMII
LAN Bypass
2 pairs of Gen3 Bypass in LAN5~8 (latch Relay)
Storage
SATA
1x internal 2.5”/3.5” SATA HDD bay(option)
eMMC
eMMC 5.0 (build option)
I/O
USB
2x external USB3.0
2x internal USB 2.0 with pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Power Supply
Watt
1U 60W power supply
Mechanical and Environment
Form Factor
1U Rack-Mount
LED
1x Power LED (Green)
1x HDD LED (Red)
1x Bypass LED (Yellow)
1x Status LED(Green/Yellew)
Dimension (W x D x H)
440mm (W) x 269.20mm (D) x 44mm (H)
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
4.5kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
R469A
PCIe x4 slot,4 RJ45 ports, 2 pairs Gen 3 bypass
R470A
RiserCard
DK001
Cable development kit:
46L-CO5204-00 Cross over 2M
46L-DB9200-01 Null modem cable 2M
46L-EC5200-00 Ethernet cat.5 cable 2M
46L-IPS200-00 KBMS cable, 15CM
46L-IUSB2B-00 USB cable, 25CM
46L-IVGA01-00 VGA cable, 20CM
46L-RJDB91-00 RJ-45 to DB-9 cable 2M
