Mainstream Network System

AEWIN Technologies Co., Ltd.

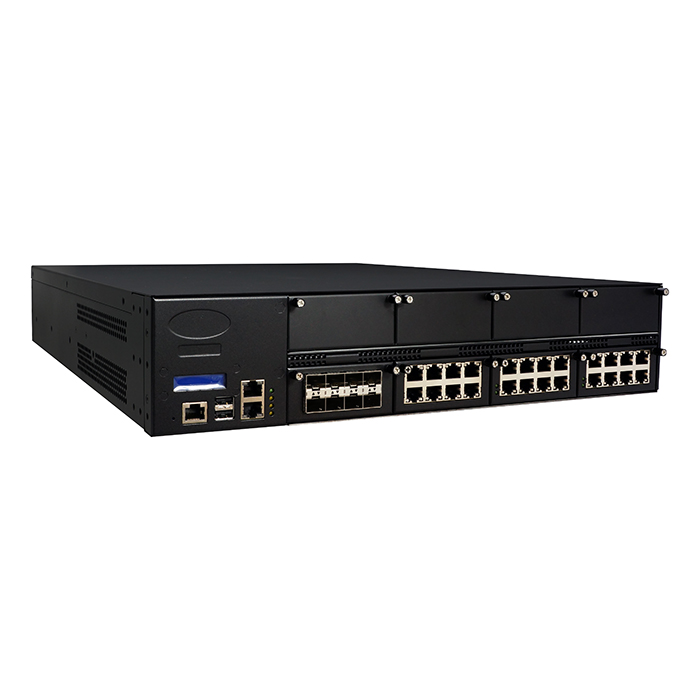

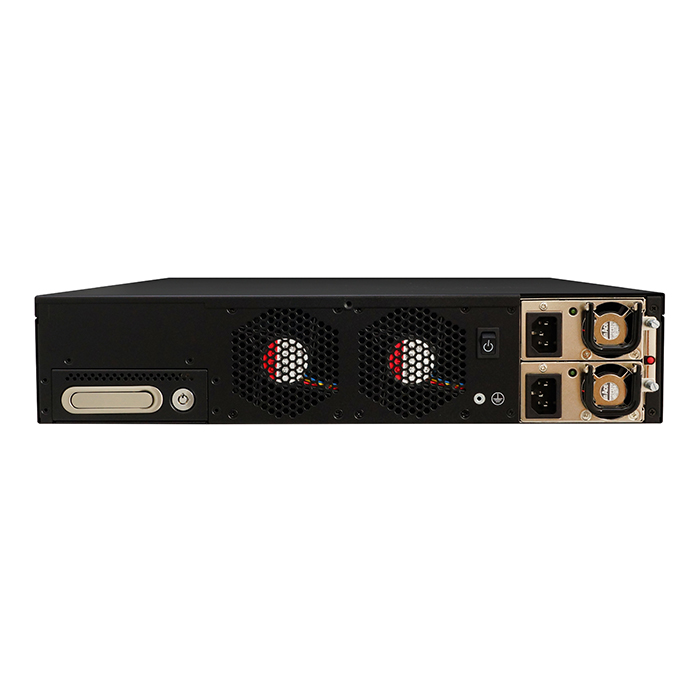

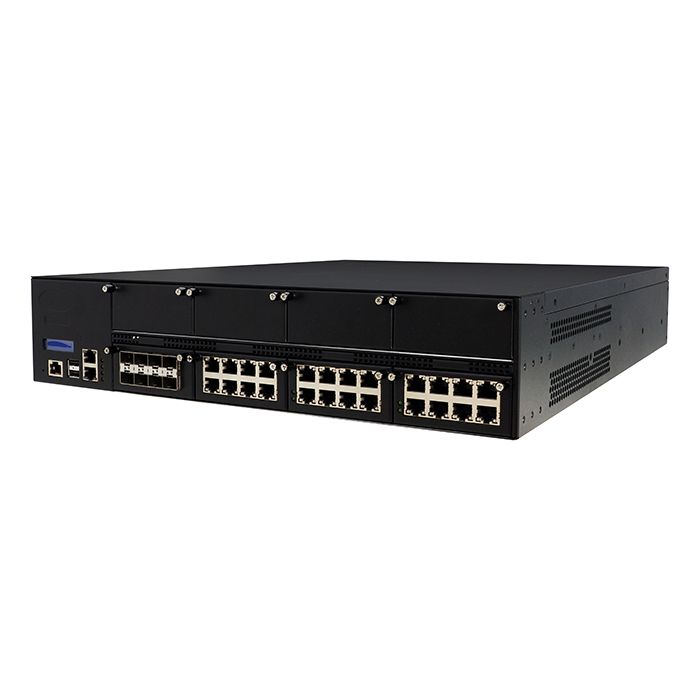

SCB-1820

2U Rack-Mount Network Appliances, Intel Xeon E3-1200 v6(Coffee Lake-S) / 8th Core i7/i5/i3 processor with C246 PCH, 4x DDR4, 2x RJ45 GbE, Console, USB, 4x SATA, CF, mSATA, 2x USB2.0, 8x PCIe(x8) slots for LAN card, 1x PCIe(x4) slot for VPN card, Redundant PSU

Overview
Specifications
Download
Options
Key features
  • Support Intel® Xeon® processor E3-1200 V6 & 8th Core i7/i5/i3 Series processor, LGA 1151
  • 2 channel DDR4 ECC/Non-ECC 2133 MHz memory, max support 64GB
  • Max support 8x PCIe(x8) slots for expansion LAN module, up to 64 GbE Copper / Fiber ports
  • 2x 2.5” or 3.5” HDD/ SSD
  • Support 2U ATX Redundant Power Supply
Status : available

The SCB-1820 is 2U Rack-Mount hardware networking system for fit all networking solutions by using New Intel® 14nm micro-architecture Coffee-Lake-S platform with efficient performance processor Xeon E3-1200 V6 family / 8th Core i7/i5/i3 and the Intel® C246 series chipse. With the next generation 3-D tri-gate design, the adoption of the 8th generation Intel® Core™ processor comes with the promise to enhance processor performance, while lowering the TDP. A new socket type, LGA 1151, has also been released for the die-shrinking architecture. The SCB-1820 is enhancement in computing performance; system responsiveness with Intel® E3-1200 V6 processor, supporting Four DDR4 Non-ECC/ECC DIMM slots (up to 2666 MHz) and maximum memory capacity is up to 64 GB. The SCB-1820 can support up to 8 NIC modules, supporting multiple Ethernet module bays for flexible port configuration; such as 10Gigabit SFP+, Gigabit copper with LAN BYPASS function or not and Gigabit fiber ports. The maximum capable Ethernet port is up to 64GbE ports. The strong IO elements of SCB-1820 include two management Ethernet ports, a console port, two USB ports, LEDs for power/ HDD/ 2x GPO. In addition, the SCB-1820 also supports inside 2x 2.5” SATA HDDs/SSDs & 1x 3.5” HDD swappable and onboard m-SATA slot & CF for basic network storage application.

Specifications
Processor System
CPU
Support Single Intel Xeon E3-1200 v6(Coffee Lake-S) / 8th Core i7/i5/i3 processors, LGA 1511
Chipset
Intel® C246 PCH
DMI
Up to 8GT/s
BIOS
AMI® UEFI BIOS
Memory
Technology
Dual-channel, ECC/Non-ECC, un-buffered, DDR4 2666MHz memory per DIMM
Capacity
UP to 64GB with 4 DIMM socket
Expansion
Onboard Expansion Slots
8x PCI-E(x8) slot for expansion NIC module
1x PCI-E(x8) slot for standard PCI-E slot (Option)
Ethernet
GbE Ethernet
2x RJ45 GbE ports
Storage
SATA
1x 3.5” & 2x 2.5” SATA HDD or SSD
CompactFlash Socket
1x CompactFlashTM Type II (Option)
m-SATA
1x m-SATA socket
I/O
USB
2x external USB 2.0 port
1x internal USB 2.0 pin header
1x internal USB3.0 pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Power Supply
Watt
2U Redun dant 300W ATX Power Supply
Mechanical and Environment
Form Factor
2U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
426mm (W) x 510mm (D) x 89mm (H)
(16.8”W x 20.1”D x 3.5”H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
20kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
R386A
Expansion module with 4 SFP+ 10 GbE ports, Intel XL710-BM1 w/o re-driver
R387A
Expansion module with 2 QSFP+ 40 GbE ports, Intel XL710-BM2 w/o re-driver
R405A
Expansion module with 4 SFP GbE ports, Intel I350-AM4
R406A
Expansion module with 4 RJ45 GbE ports, two pairs Gen3 bypass, Intel I350-AM4
R445A
Expansion module with 2 SFP+ 10 GbE ports, Intel 82599ES w/o re-driver
R445B
Expansion module with 2 SFP+ 10 GbE ports, Intel X710-BM2 w/o re-driver
R471D
Expansion module with 8 RJ45 GbE ports, four pairs Gen 3 bypass, Intel I350-AM4, with PCIe switch IDT89HPES16T4AG2
R472B
Expansion module with 8 SFP GbE ports, Intel I350-AM4, with PCIe switch IDT89HPES16T4AG2
R479A
Expansion module with 4 SFP+ 10G ports, Intel 82599ES with PCIe Switch PLX PEX8642
R498A
Expansion module with 4 x SFP ports and 4 x RJ45 GbE ports, two pairs G3 bypass, Intel i350-AM4 & IDT89HPES16T4AG2 Switch
R514A
Expansion module with 4 SFP GbE ports, two pair Gen3 bypass, Intel i350-AM4
R516A
Expansion module with 2 SFP+ 10GbE ports, one pair Gen3 bypass, Intel 82599ES
R516B
Expansion module with 2 SFP+ 10GbE ports, one pair Gen3 bypass, Intel X710-BM2
R518A
Expansion module with 4 SFP+ 10GbE ports, two pair Gen3 bypass, Intel 82599ES with PCIe Switch PLX PEX8642
R519A
Expansion module with 4 SFP+ 10GbE ports, two pair Gen3 bypass, Intel XL710-BM1
