1U Rack-Mount network appliance, Intel® Xeon E3-1275 v5 (Skylake-S) and 6th Core i7/i5/i3 processor with Intel® C236 PCH, support DDR4 up to 64GB, support 1 standard PCIe x8 card and 1 PCIe x8 slot for expansion module, 2.5” SATA3.0 HDD/SSD, 2 USB 3.0, 12 GbE Copper ports, 2 GbE Fiber ports, 1 IPMI, 1 Console, 1 m-SATA, 1 ATX PSU.

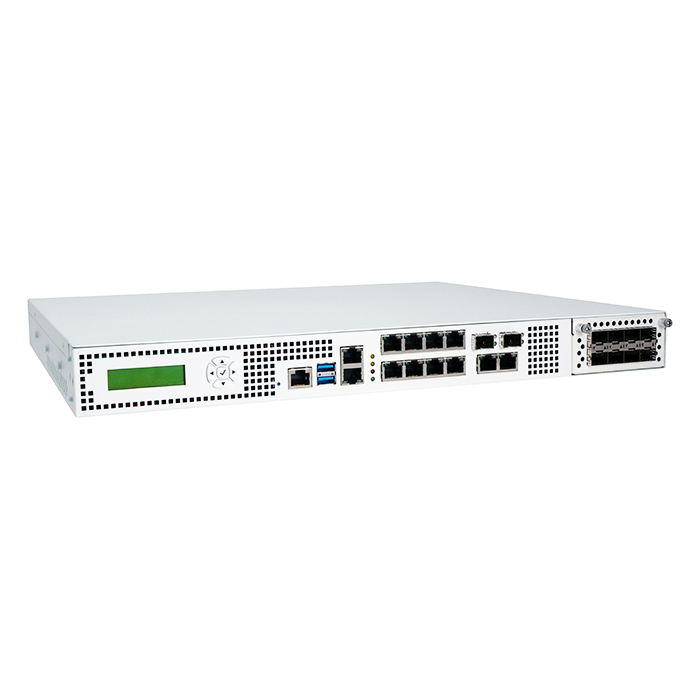

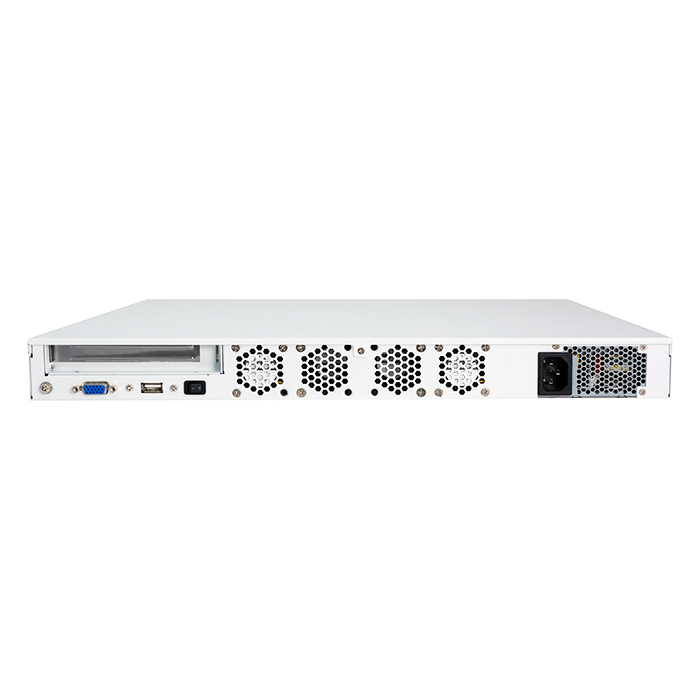

The SCB-1711 is 1U Rack-Mount networking system for fit all networking solutions by using New Intel® 14nm micro-architecture Skylake-S series 6th Core i7/i5/i3 processor and Intel® Xeon® Processor E3-1275 v5 with the Intel® C236 PCH. With the next generation 3-D tri-gate design, the adoption of the 6th generation Intel® Core™ processor comes with the promise to enhance processor performance, while lowering the TDP. A new socket type, LGA 1151, has also been released for the die-shrinking architecture.The SCB-1711 platform supports four DDR4 2133 MHz un-buffered / Non-ECC / ECC DIMM and maximum memory capacity is up to 64 GB. The storage interface support 2.5” SATA 3.0 HDD/SSD and 1 m-SATA slot for basic network storage application.The SCB-1711 supports flexible PCIe port configuration, support 1 standard PCIe x8 card and 1 PCIe x8 slot for expansion module. Multiple expansion modules support for 4 / 8 GbE Copper, 4 / 8 GbE Fiber, 2 / 4 10GbE Fiber, 2 40GbE Fiber. Maximum 20 GbE Copper ports support with 6 pairs BYPASS function. The strong IO elements of SCB-1711 support one console port, one IPMI port, two USB 3.0 ports, a LCD module with keypad, LEDs for BYPASS / Status / HDD / Power.
