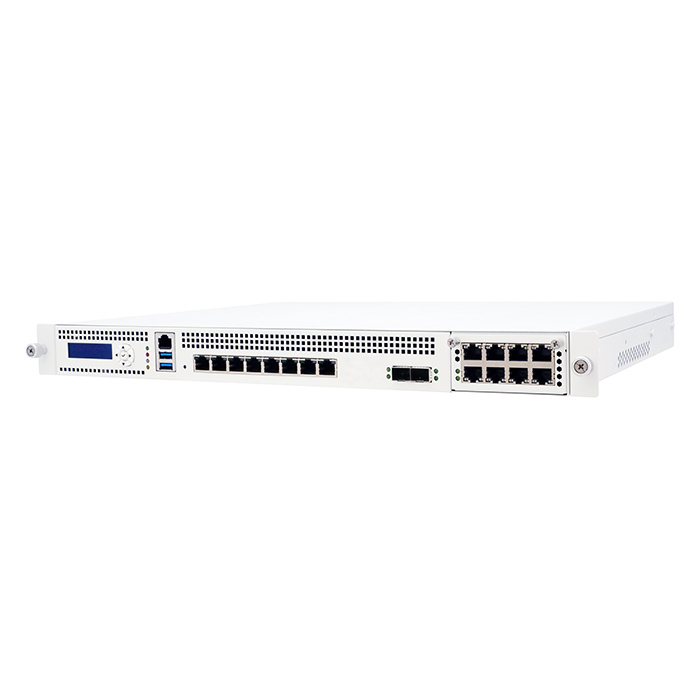

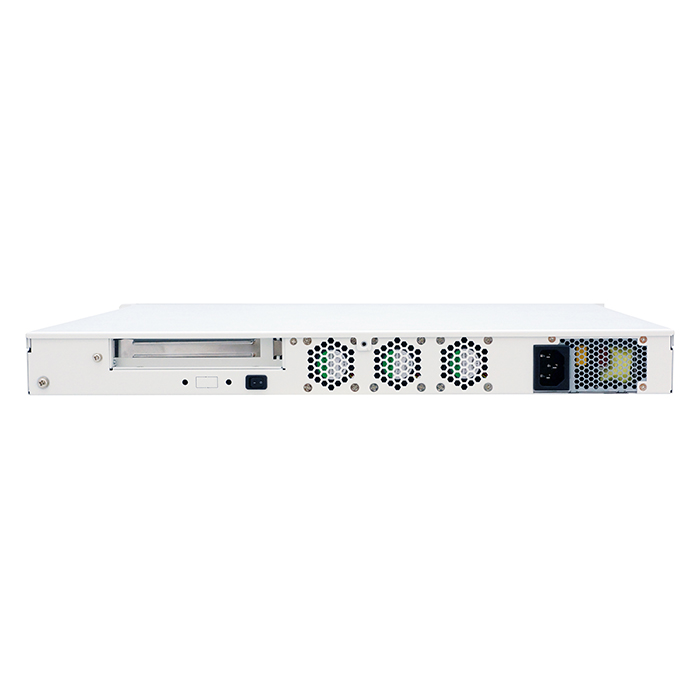

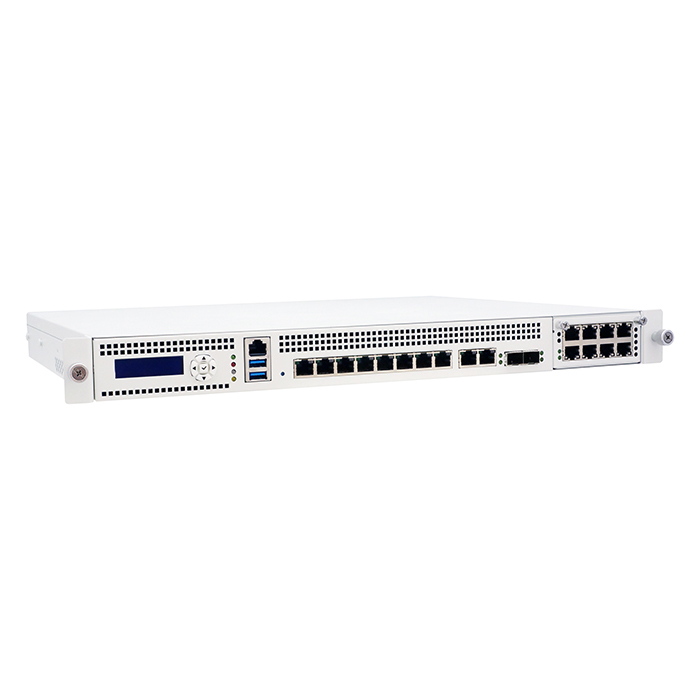

1U Rack-Mount Network Appliances, Intel® Atom C3000 (Denverton-NS) Processor Network System, 8x Copper GbE, 2x SFP+ 10GbE ,eMMC 8GB, mSATA, SATA, PCIe x8
The SCB-1706 is 1U Rack-Mount high-performance networking system which is based on Intel® Atom™ C3000 processor family. This new generation platform provides highly CPU computing power that CPU cores up to 16 cores, supporting Intel® Quick Assist Technology, standard PCIe slot, expansion Ethernet module, SATA3 and USB3.0.The SCB-1706 is enhancement in computing performance, system responsiveness with Intel® Atom™ Processor, supporting four DDR4 2400MHz UDIMM/ECC UDIMM/RDIMM and maximum memory capacity is up to 128 GB. With 20 PCIe Express lanes, the SCB-1706 is able to support up to 1 NIC modules with multiple Ethernet module bays for flexible port configuration; such as 10G SFP+, GbE SFP and GbE Gne. 3 BYPASS function support.The various I/O elements of SCB-1706 include a console port, two USB 3.0 ports, an LCM module with 5 functional button keypad, LEDs for power/HDD/2x GPO. In addition, SCB-1706 supports one SATA 3.5” or 2.5” HDD/SSD, eMMC, mSATA or CompactFlash™ (option) slot for basic network storage applications.
