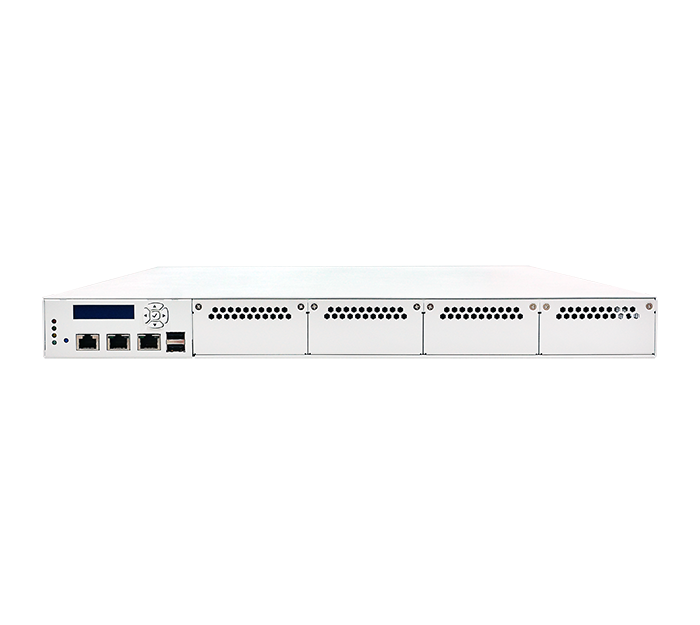

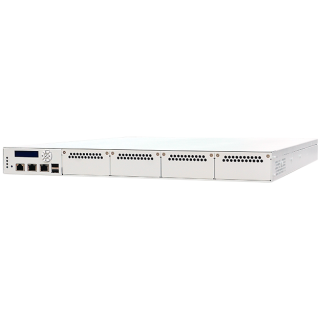

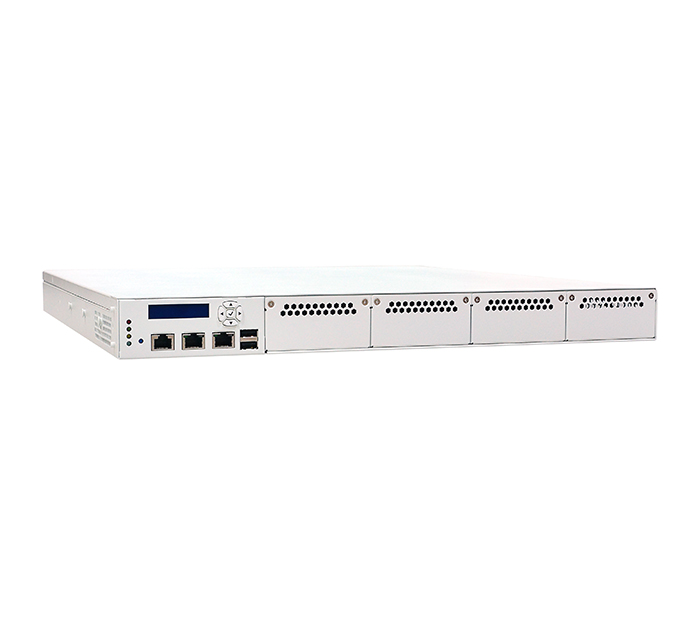

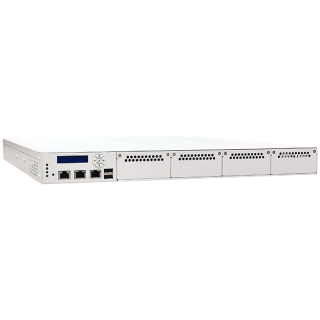

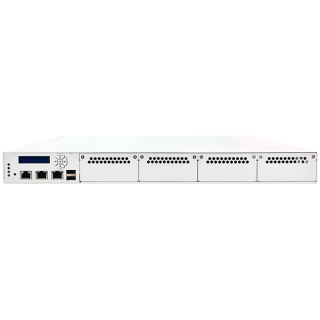

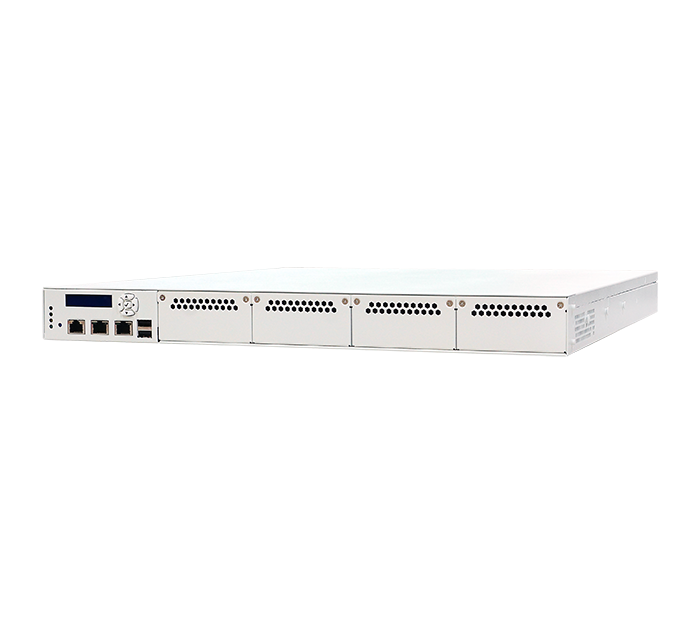

SCB-1826
4x DDR4 (ECC) UDIMM memory, up to 2933 MHz
2x RJ45 1GbE ports, 4x Expansion Module bays (2x PCIe x8 & 2x PCIe x4)
1x 3.5”or 2x 2.5” SATA, 1x M.2 2242/2280 or 1x mPCIe and 1x CF
Optional IPMI, AEWIN TSB module
The SCB-1826 is a 1U Rack-Mount high-performance networking system, that supports a single Intel® Xeon® W and 10th/11th Gen Core™ processors for IoT applications. It is based on Intel’s new 14nm Comet Lake architecture to deliver breakthrough computing performance. CPU up to 10 cores / 20 Threads, 20MB cache, and maximum turbo frequency of 4.8GHz. Platform is powered by the W480E chipset.
The SCB-1826 supports 4x DDR4 ECC DIMM (up to 2933MHz) in dual channels and maximum memory capacity up to 128GB. With total 24 PCI Express lanes, the SCB-1826 can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration, such as 1/10/25/40/100Gigabit fiber or copper with optional Bypass function. The maximum capable Ethernet port is up to 32x 1GbE ports. SCB-1826 supports standard FHHL PCIe slot for RAID or others PCIe device usage in rear.
The strong IO elements of SCB-1826 include two management Ethernet port (one for management, another for optional IPMI function), a console port, two USB 2.0 ports, a Graphic LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO. In addition, the SCB-1826 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one M.2 M key 2280/2242 slots for basic network storage application.

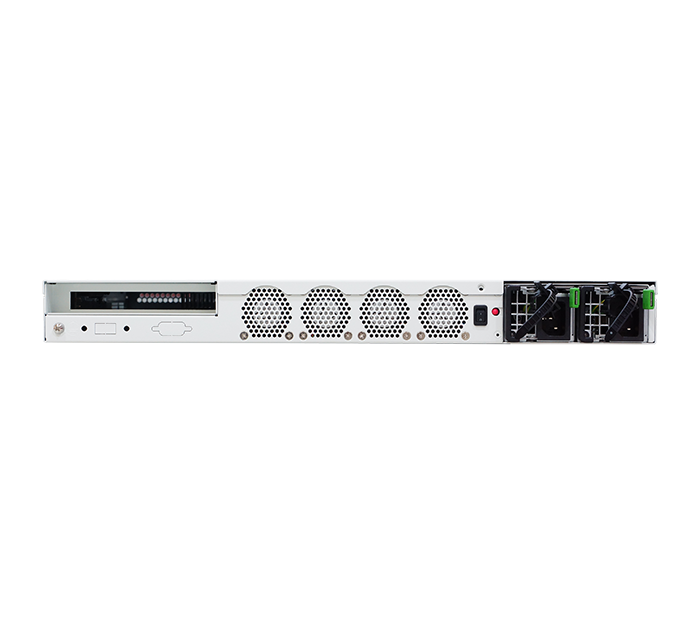

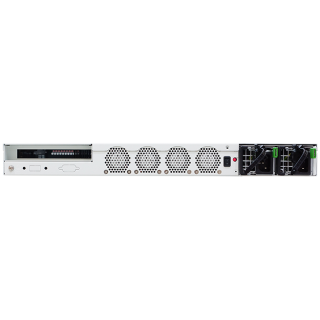

Rear side: 1x PCIe x8 slot (x4 signal)
Inside: 1x mPCIe(SCB-1826B only)
250W Flex ATX PSU(SCB-1826B)
1x Power LED (Yellow)
1x HDD LED (Green)
non-condensing
