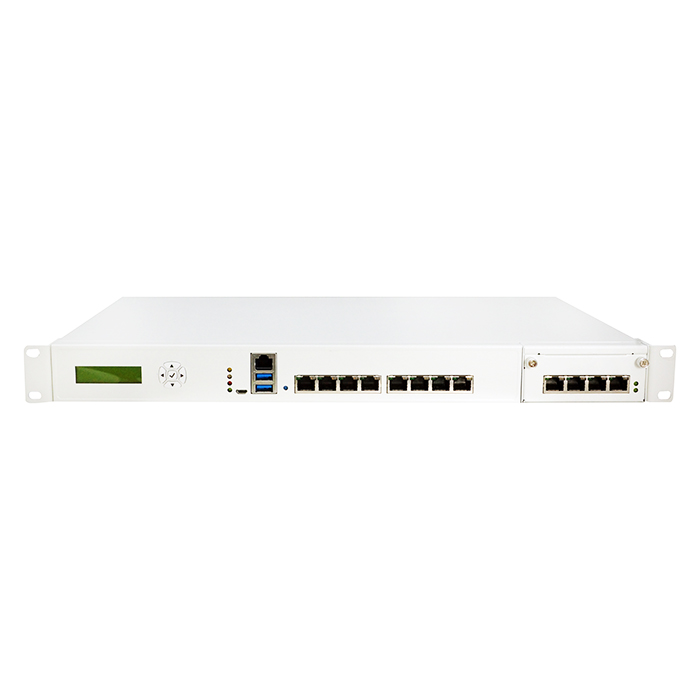

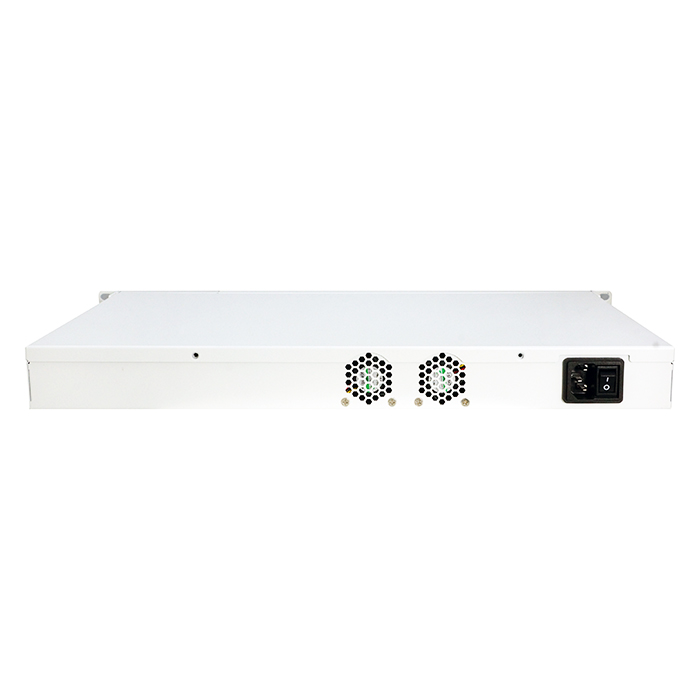

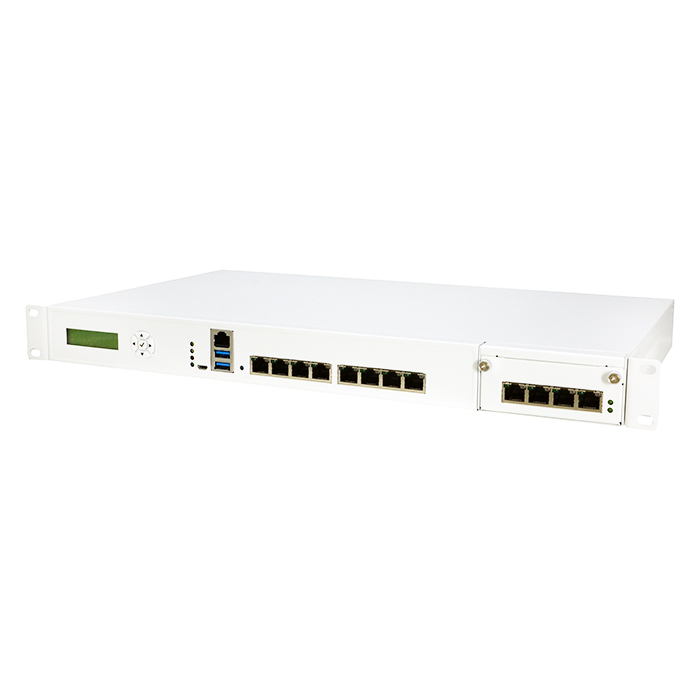

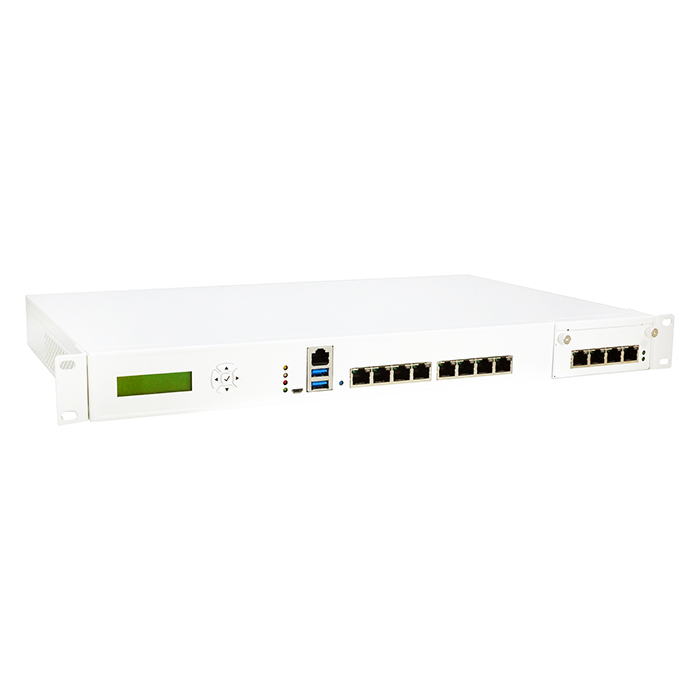

SCB-7907 是一款设计用于网路服务应用的 1U 机架式硬体平台。支援下一代 Intel® Denverton-NS ™ 处理器。拥有 2C/4C 核心；这一新一代平台提供高效的 CPU 计算能力，CPU 核心数可达 16 颗，总共支援 20 条 PCIe 通道，以灵活扩展网路介面模组。SCB-7907 在计算性能和系统响应方面有所提升，搭载 Intel® Denverton-NS™ 处理器，支援四个 DDR4 ECC SODIMM（最高可达 2133 MHz），最大记忆体容量可达 32GB。SCB-7907 能够支援 1 个 PCIe x4（相当于 4 PCIe x1）、1 个 RJ45 控制台埠、2 个 USB 3.0 埠，以及电源/HDD/旁路/状态的 LED 灯和 2 对旁路 LAN 埠功能。SCB-7907 支援 1 x mSATA、CF 插槽；1 x 2.5" SATA HDD，适用于基本的网路储存应用。
处理器系统
CPU
Intel® Atom C3000 (Denverton-NS) Processor
BIOS
AMI® UEFI BIOS
记忆
科技
ECC DDR4 1866 / 2133 MHz SODIMM memory
Memory
Capacity
Up to 32GB
扩展
上板扩展插槽
1 x PCIe x4 slot for Ethernet module (Optional riser card)
Expansion
Ethernet
GbE Ethernet
LAN1~4: Intel I210-AT via PCIex1
LAN5~8: Marvell 88E1543 via SGMII
LAN5~8: Marvell 88E1543 via SGMII
LAN 绕过
2 pairs of Gen3 Bypass in LAN5~8 (latch Relay)
I/O
USB
2x external USB3.0
2x internal USB 2.0 with pin header
2x internal USB 2.0 with pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
1x internal 5x2 pin header (COM2)
Storage
SATA
1x internal 2.5”/3.5” SATA HDD bay(option)
eMMC
eMMC 5.0 (build option)
储存
电源
瓦特
1U 60W power supply
机械与环境
形状因素
1U Rack-Mount
LED
1x Power LED (Green)
1x HDD LED (Red)
1x Bypass LED (Yellow)
1x Status LED(Green/Yellew)
1x HDD LED (Red)
1x Bypass LED (Yellow)
1x Status LED(Green/Yellew)
尺寸 (宽 x 深 x 高)
440mm (W) x 269.20mm (D) x 44mm (H)
操作温度
0 ~ 40°C ( 32 ~ 104°F )
储存温度
-20 ~ 75°C (-4 ~ 167°F)
湿度
10 ~ 85% relative humidity, non-operating,
non-condensing
non-condensing
重量
4.5kg
认证
CE/FCC
