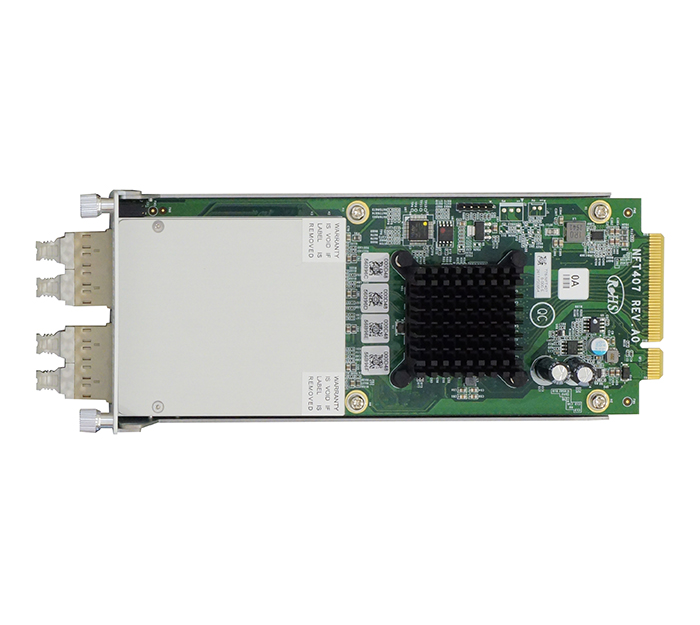

AEWIN NFT407 Network Expansion Module is built upon the Intel® XL710-BM1 chipset, featuring 4x 10GbE SFP+ ports. Available with 2 Pairs Bypass port s to fit into different networking requirements. SR-IOV functionality is enabled to offer DMA access for virtual machines, as well as DPDK enabled drivers for enhanced packet forwarding performance.
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
1x Intel® XL710-BM1
Features
VMDq, SR-IOV, DDP, DPDK
Ethernet Port
4x 10GbE SFP+ Ports
Bypass
2 Pairs Gen 3 Bypass
Bus Type
PCIe Gen 3 x8
Mechanical
Dimension(W x D x H): 74 x 194 x 29 mm
Weight(with tray): 345g
Weight(without tray): 155g
Weight(with tray): 345g
Weight(without tray): 155g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
NFT407A : 1x Intel® XL710-BM1, 4x 10GbE SFP+ Fiber,2 Pairs Gen 3 Bypass with Multi-mode Transceiver,Ports Sequence Right to Left
NFT407AL : 1x Intel® XL710-BM1, 4x 10GbE SFP+ Fiber,2 Pairs Gen 3 Bypass with Multi-mode Transceiver,Ports Sequence Left to Right
NFT407B : 1x Intel® XL710-BM1, 4x 10GbE SFP+ Fiber, and 2 Pairs Gen 3 Bypass with Single-mode Transceiver(20KM),Ports Sequence Right to Left
NFT407AL : 1x Intel® XL710-BM1, 4x 10GbE SFP+ Fiber,2 Pairs Gen 3 Bypass with Multi-mode Transceiver,Ports Sequence Left to Right
NFT407B : 1x Intel® XL710-BM1, 4x 10GbE SFP+ Fiber, and 2 Pairs Gen 3 Bypass with Single-mode Transceiver(20KM),Ports Sequence Right to Left
