SCB-6906

Fanless Desktop Network Appliances, Intel Celeron N3350 / Pentium N4200 and Atom E3930/E3940/E3950 Network system, 4GbE ports, 2GB memory, 8GB eMMC, USB, console, mini-PCIe

Overview
Specifications
Download
Options
Key features
  • Slim Fanless Network System
  • Ideal Noiseless System for Silence environments Use
  • Intel Celeron N3350 / Pentium N4200 and Atom E3930/E3940/E3950
  • DDR3L 1866MHz memory, max support 2GB
  • Max 4x RJ45 GbE ports
  • eMMC flash, max support 64GB
  • Expansive I/O with 2x USB 2.0, 1x mini-PCIe socket and 1x Console port
Status : available

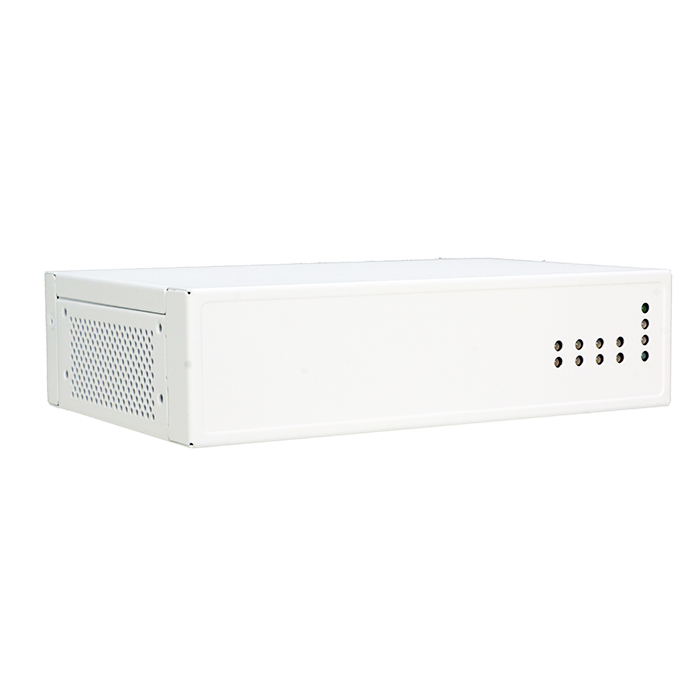

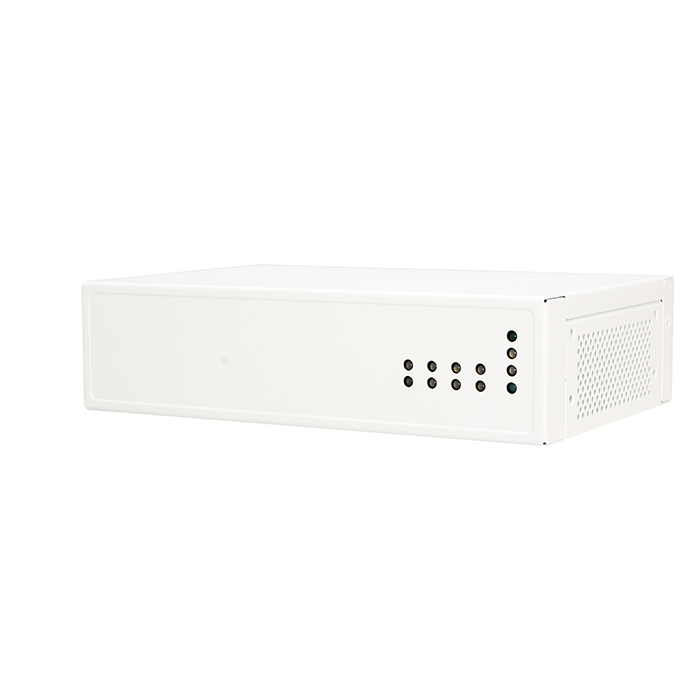

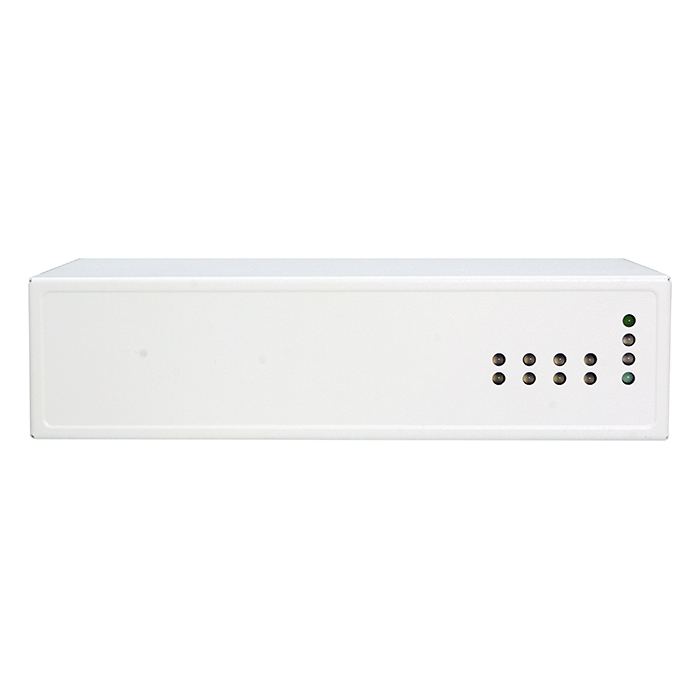

The SCB-6906 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Intel® Celeron®/ Atom Apollo Lake-I low voltage processors.The SCB-6907 supports 2GB on-board DDR3L memory. In order to provide the best network performance and best utilization, the storage interfaces include eMMC, and it affords four Copper GbE on rear-panel. The rear panel also has two USB 2.0 ports, one RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6906 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant

Specifications
Processor System
CPU
Intel Celeron N3350 / Pentium N4200 and Atom E3930/E3940/E3950 Processor
BIOS
AMI® UEFI BIOS
Memory
Technology
Un-buffered and Non-ECC DDR3L 1600/1866MHz memory
Capacity
Onboard 2GB
Ethernet
GbE Ethernet
4 x Copper GbE ports, Realtek RTL8111
Storage
eMMC
eMMC 5.0
I/O
USB
2x external USB 3.0 ports
Serial
1x RJ45 Console port (COM1)
1x micro-USB Console port (Option)
Power Supply
Watt
24W power adapter
Mechanical and Environment
Form Factor
Desktop
LED
1x HDD LED (Blue)
1x Power LED (Green/Red)
Status (Green/Red)
WLAN LED (Green)
4 pairs LEDs for four Ethernet ports speed and Active/Link
Dimension (W x D x H)
170mm (W) x 115mm (D) x 44mm (H)
(6.7”W x 4.5” D x 1.7” H)
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
1kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
DK
Cable development kit
R219A: VGA module, mini PCI-E add-on card
46L-CO5204-00 Cross over 2M
46L-EC5200-00 Ethernet cat.5 cable 2M
46L-RJDB91-00 RJ-45 to DB-9 cable 2M
