Performance Network System

AEWIN Technologies Co., Ltd.

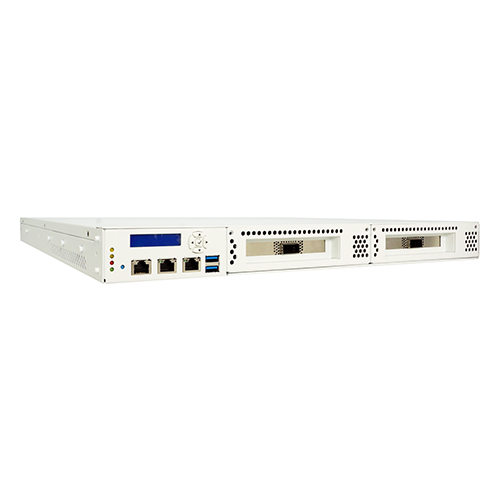

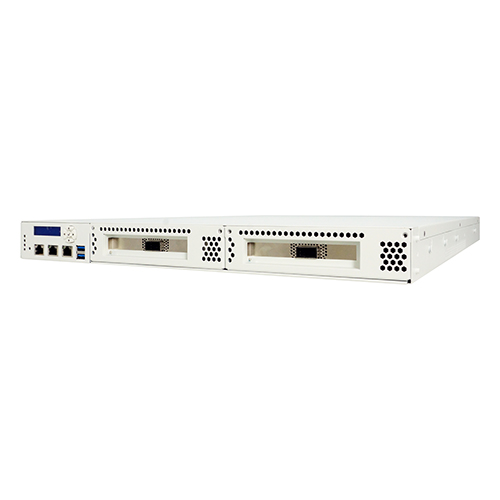

SCB-1935B

1U Rack-mount Network Appliance single AMD® EPYC™ 7002/7003 (Rome/Milan) Series Processor Networking System, support DDR4 up to 3200MHz, 2x USB3.0, 2x 1GbE RJ45, 1x Console, mSATA, 2x M.2 22110, PCIe x16 slot, Redundant PSU

Overview
Specifications
Download
Options
Key features
  • Support AMD® EPYC™ 7002/7003 (Rome/Milan) processors, LGA4094
  • 8-channel DDR4 ECC Registered 3200MHz memory, up to 512GB
  • 2x Full height PCIe Gen4 x16 slots
  • 3x riser card for PCIe x16 expansion slot (2 to front)
  • 2 x 2.5”HDD/SSD, 2 x M.2 2280/22110 & 1 x m-SATA
  • Support IPMI card with VGA (optional)
Status : available

The SCB-1935 is a 1U rack-mount high-performance networking system. Supporting single AMD® EPYC™ 7002/7003 (Rome/Milan).

Based on of AMD’s new “Zen” CPU core delivers breakthrough computing performance. CPU cores up to 32 cores, supports 64MB cache and total with 128x PCIe lanes.

The SCB-1935 supports eight channels DDR4 RDIMM (up to 3200MHz). With 32x front access PCI Express lanes, the SCB-1935A can support up to 4x NIC modules, support multiple Ethernet module bays for flexible port configuration; such as 1/10/40 Gigabit fiber, Gigabit copper with BYPASS function or not. The maximum capable Ethernet port is up to 32x 1GbE ports. SCB-1935B supports up to 2x PCIe x16 slots for single/dual port 100 Gigabit Ethernet Adapter card in front and 1x PCIe x16 slot in rear. The strong IO elements of SCB-1935 include two management Ethernet ports (one for management, another for optional IPMI function), a console port, two USB 3.0 ports, a graphic LCD module with keypad (5 key), LEDs for power/HDD/2x GPIO. In addition, the SCB-1935 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one mSATA and two M.2 2280/22110 slots for basic network storage application..

Specifications
Processor System
CPU
Support single AMD® EPYC™ 7002/7003 (Rome/Milan) Processor Socket SP3, LGA4094
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 8 DIMMs (Eight channel)ECC & Registered:DDR4 3200MHz memory,
up to 64GB per DIMM
Capacity
RDIMM/LRDIMM:up to 512GB
Expansion
Onboard Expansion Slots
1x SO-DIMM slot for IPMI card with VGA support
3x PCIe Gen3 x16 slot
2x M.2 socket by PCIe Gen3 x4
GbE Ethernet
2x 1GbE RJ45 ports
I/O
USB
2x external USB 3.0 port
1x internal USB 2.0 (5x2 pin header)
supports USB DOM
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Power Supply
Watt
1U Redundant 500W ATX Power Supply
Storage
SATA
Support 1x 3.5” or 2x 2.5” SATA HDD or solid state drives
1x mSATA socket
Mechanical and Environment
Form Factor
1U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 600mm (D) x 44mm (H)
(17.3”W x 23.6”D x 1.73”H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
12 kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
R384B
Expansion module with 8 SFP GbE ports, Intel i350-AM4
R385B
Expansion module with 8 RJ45 GbE ports, two pairs Gen 3 bypass, Intel I350-AM4
R386A
Expansion module with 4 SFP+ 10 GbE ports, Intel XL710-BM1 w/o re-driver
R387A
Expansion module with 2 QSFP+ 40 GbE ports, Intel XL710-BM2 w/o re-driver
R479A
Expansion module with 4 SFP+ 10G ports, Intel 82599ES
R492A
IPMI Card with VGA for SCB-1925, ASPEED AST2500
R492B
VGA Card for SCB-1925, ASPEED AST2510
R509A
Expansion module with 2 ZSFP+ 25GbE ports, Intel XXV710
