AEWIN

Key features

• Single Intel® Skylake SP / Cascade Lake SP Xeon® scalable series Processor,LGA3647
• 6-channel DDR4 ECC/Registered 2933 MHz memory, Max up to 768TB(per CPU)
• Support Intel® QAT (by SKU)
• 8x PCIe x8 slot for Expansion Lan Modules
• 2x 2.5" Hot-swap HDD/SSD, 1x m-SATA
• Support BMC on board

Status : available

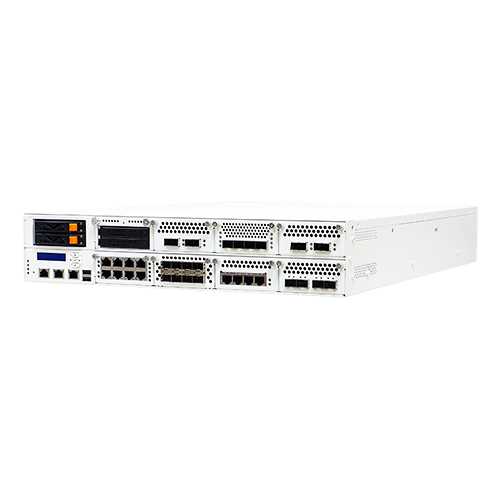

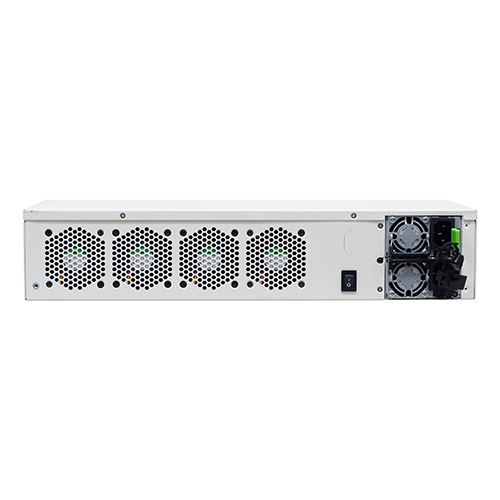

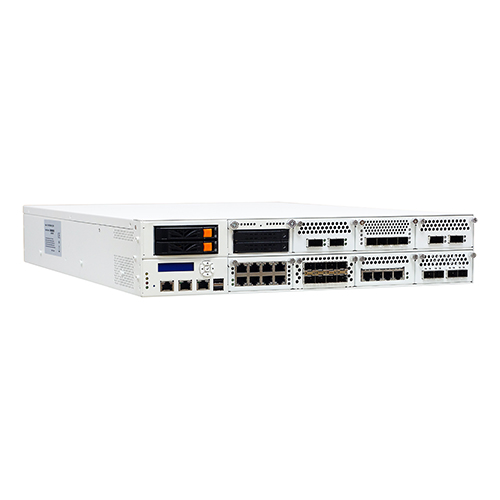

The SCB-1927 is a 2U Rack-Mount networking system. Supporting Intel® Purley platform with efficient performance processor Xeon® scalable series and Intel® C621 PCH (codenamed Lewisburg). The new generation platform provides high performance, CPU cores up to 28 cores, supports AVX-512 instructions, Ultra Path Interconnect (UPI) up to 10.4 GT/s.

The SCB-1927 supports 6 channels DDR4 register ECC DIMM (up to 2933MHz) and maximum memory capacity is up to 768TB(per CPU). With 48 PCI Express lanes, the SCB-1927 can support up to 8 NIC modules, support multiple Ethernet module bays for flexible port configuration; such as1/10/40 Gigabit fiber, Gigabit copper with BYPASS function or not.

The strong IO elements of SCB-1927 include two management Ethernet port (one for management, another for option IPMI function), a console port, two USB 2.0 ports, LEDs for PWR / HDD / 2x GPO. In addition, the SCB-1927 also supports 2x 2.5" Hot-swap HDD/SSD and onboard m-SATA slot for basic network storage application.
