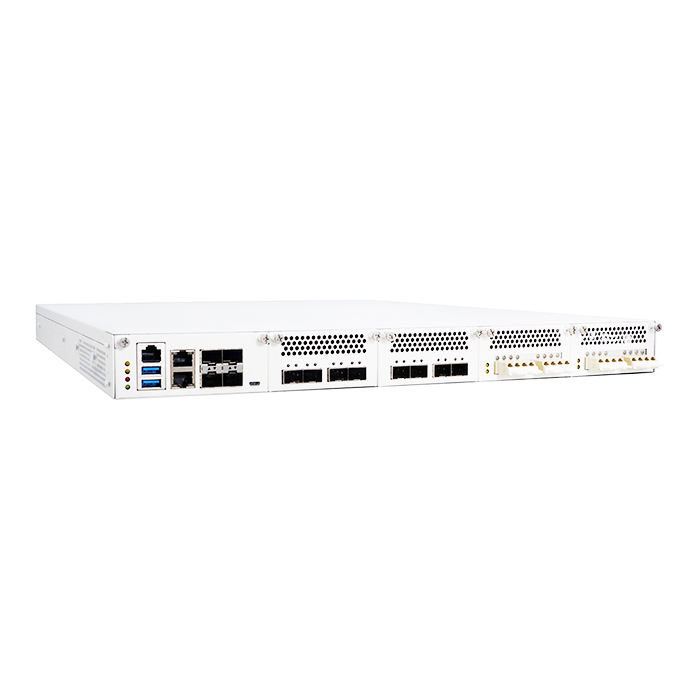

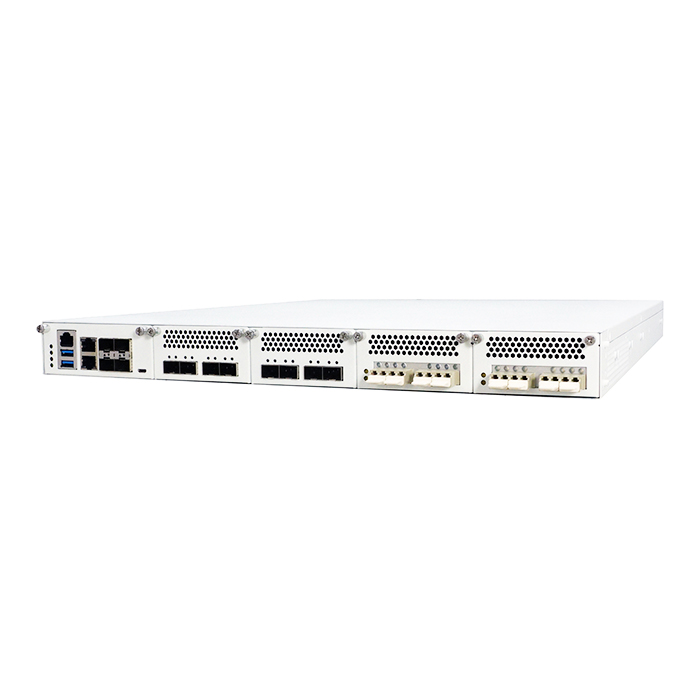

SCB-1924A

1U Rack-Mount Network Appliances, Single 2nd Gen Intel Xeon Scalable processor with C624 PCH, DDR4, 4x PCIe x8 slot for NIC, Console, USB2.0, USB 3.0, 2 GbE, 2x 2.5” HDD, CF/ m-SATA, 2 M.2 2280,2x USB 3.0, 2x GbE, Console, CF, mSATA, M.2, PCIe x16 slot, Redundant PSU

Overview
Specifications
Download
Options
Key features
  • 2nd Gen Intel Xeon Scalable Series Processor, LGA3647
  • 6 channel DDR4 ECC/Registered 2400/2666 MHz Memory, Up to 32GB per DIMM, max support 384GB.
  • 4x PCIe x8 slots for expansion LAN modules, up to 96 GbE Copper / Fiber ports
  • Support Hot-Swappable FAN module
  • 1x RJ45 Console port, 2x USB 3.0, 2x RJ45 GbE ports, 4x SFP+ 10 GbE ports
  • Support 100GbE LAN modules (Option)
  • 1x standard PCIe x8 add-on card (Option)
  • Support IPMI card with VGA (Option)
  • 2x 2.5” HDD/SSD hot-plugging (Option)
Status : available

1U Rack-Mount, Single 2nd Gen Intel Xeon Scalable processor with C624 PCH, DDR4, 4x PCIe x8 slot for NIC, Console, USB2.0, USB 3.0, 2 GbE, 2x 2.5” HDD, CF/ m-SATA, 2 M.2 2280,2x USB 3.0, 2x GbE, Console, CF, mSATA, M.2, PCIe x16 slot, Redundant PSU

Specifications
Processor System
CPU
Single 2nd Gen Intel Xeon Scalable processors
Chipset
Intel® C624 PCH
System Bus
UPI up to 10.4 GT/s
BIOS
AMI® UEFI BIOS
Memory
Technology
6x channels, 2x DIMM per channel
ECC & Registered:DDR4 2133/2400/2666 MHz memory,up to 32GB per DIMM
LRDIMM:DDR4 2133/2400/2666 MHz,up to 32GBper DIMM
Capacity
RDIMM:up to 384GB
LRDIMM:up to 384GB
Expansion
Onboard Expansion Slots
4x PCIe x8 slots for NIC module
1x standard PCIe x8 add-on card (Option)
I/O
USB
2x external USB 3.0 ports
2x internal USB 3.0 pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Ethernet
GbE Ethernet
2x RJ45 GbE ports (1x IMPI, 1x MGMT)
4x SFP+ 10 GbE ports
Storage
SATA
Support 4x 2.5” SATA HDD or SSD
CompactFlash Socket
1x CompactFlash Type II
Power Supply
Watt
Redund ant 550W CRPS Power Supply
Mechanical and Environment
Form Factor
1U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED(Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 548mm (D) x 44mm (H)
(17.2”W x 21.5”D x 3.5”H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
9 kg
Certification
CE/FCC
