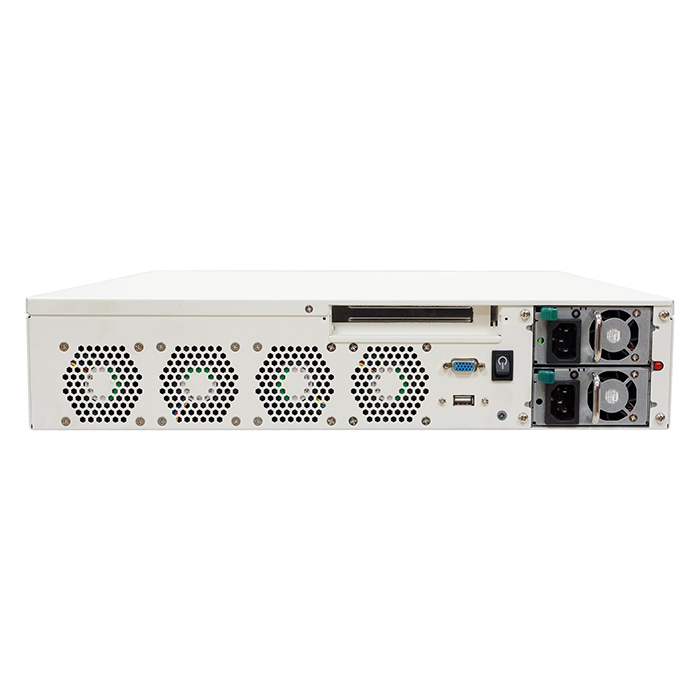

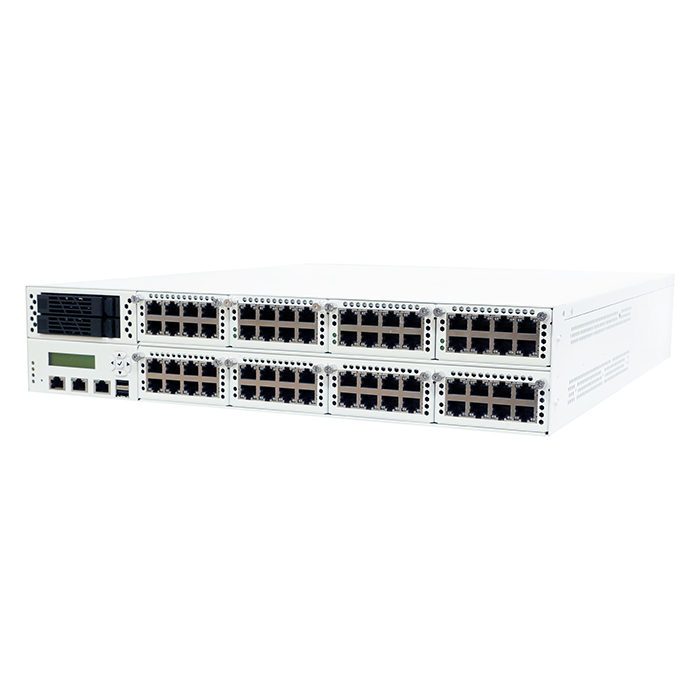

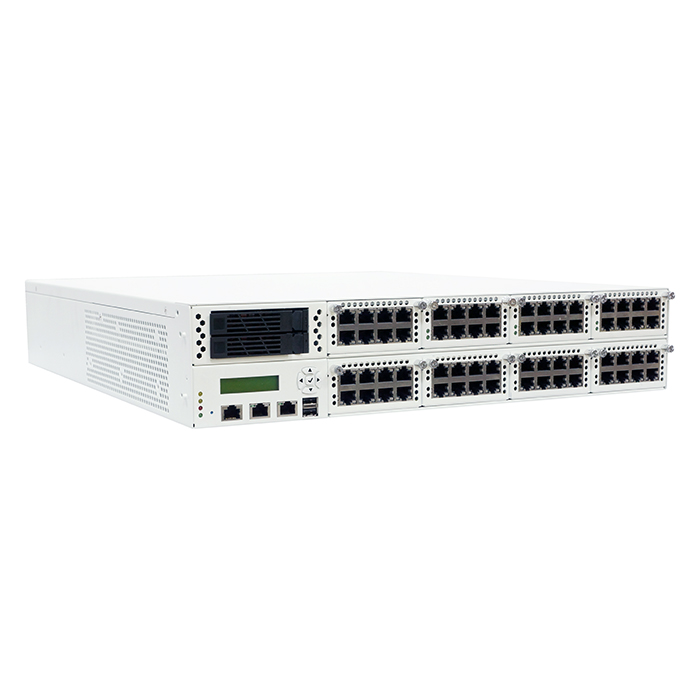

SCB-1910

2U Rack-Mount Network Appliances,Dual Intel Xeon E5-2600 v3/v4(Haswell/Broadewll-EP) Series Processor and Intel® C612 PCH Network System, support DDR4 up to 256GB, 8 PCIe x8 slot for expansion NIC module, 2 x 2.5” SATA HDD swappable, 2 USB, 2 GbE, 1 Console, CF, 1 PCIe x8 slot, Redundant PSU

Overview
Specifications
Download
Options
Key features
  • Dual Intel Xeon E5-2600 v3/v4(Haswell/Broadewll-EP) Series processor, LGA 2011-3
  • 4 channel DDR4 Registered 1866/2133/2400 MHz memory, max support 256GB
  • Max support 8 x PCIex8 slots for expansion LAN module, up to 64 GbE Copper / Fiber ports
  • 2 x 2.5” HDD/ SSD swappable
  • Support IPMI card with VGA (option)
Status : available

The SCB-1910 is 2U Rack-Mount high-performance networking system for fit all networking solutions by using New Intel® Microarchitecture Haswell-EP platform with efficient performance processor Xeon® E5-2600 V3/V4 family and the Intel® C612 series chipset (codenamed Wellsburg). This new generation platform provides highly performance, CPU cores up to 18 cores, supporting 45MB cache and total with 40 PCIe lanes. The SCB-1910 is enhancement in computing performance, system responsiveness with Intel® E5-2600 V3/V4 processor, supporting eight DDR4 ECC RDIMM/ LRDIMM (up to 2400 MHz) and maximum memory capacity is up to 256 GB. With 40 PCIe Express lanes, the SCB-1910 can support up to 8 NIC modules, supporting multiple Ethernet module bays for flexible port configuration; such as 10Gigabit SFP+, Gigabit copper with BYPASS function or not and Gigabit fiber ports. The maximum capable Ethernet port is up to 64 GbE ports. The strong IO elements of SCB-1910 include two management Ethernet ports (one for management, another for option IPMI function), a console port, two USB ports, a LCD module with keypad (5 key), LEDs for power/ HDD/ 2x GPO. In addition, the SCB-1910 also supports two front-swappable 2.5” SATA HDDs/SSDs and onboard CompactFlashTM for basic network storage application.

Specifications
Processor System
CPU
Dual Intel Xeon E5-2600 v3/v4(Haswell/Broadewll-EP) Series, LGA 2011
Chipset
Intel® Wellsburg C612 PCH
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 8 DIMMs(Four channels per CPU, 2 DIMMs per channel)
1.Registered DDR4 2400 MHz memory, up to 32GB per DIMM
2.LRDIMM:DDR4 2400 MHz, up to 32GB per DIMM
Capacity
UDIMM/ RDIMM:up to 256GB
LRDIMM:up to 256GB
Expansion
Onboard Expansion Slots
1.1x SO-DIMM slot for IPMI card with VGA support
2.1x Gen.3 PCIe x4 in PCIex8 slot
Ethernet
GbE Ethernet
2x RJ45 GbE ports
Storage
SATA
Support 2x 2.5” SATA HDD or solid state drives swappable
CompactFlash Socket
1x Compact Flash Type II
I/O
USB
2x external USB 2.0 port
1x internal USB 2.0 (5x2 pin header)
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pn header (COM2)
Power Supply
Watt
2U Redun dant 550W ATX Power Supply
Mechanical and Environment
Form Factor
2U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 501mm (D) x 88mm (H)
(17.2”W x 20.04”D x 3.52”H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
20kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
R303D
IPMI Card with VGA support for SCB-1910
R384A
Expansion module with 8 SFP GbE ports, Intel® 82580EB
R385A
Expansion module with 8 RJ45 GbE ports with two pairs Gen.3 bypass, Intel® 82580EB
R386A
Expansion module with 4 SFP+ 10 GbE ports, Intel® XL710-BM1 w/o re-driver
R387A
Expansion module with 2 QSFP+ 40 GbE ports, Intel® XL710-BM2 w/o re-driver
R405A
Expansion module with 4 SFP GbE ports, Intel® i350-AM4
R406A
Expansion module with 4 RJ45 GbE ports with two pairs Gen.3 bypass, Intel® i350-AM4
R408A
Expansion module with 4 RJ45 10G ports, Intel® X540-BT2
R408B
Expansion module with 2 RJ45 10G ports, Intel® X540-BT2
DK002
Cable development kit:
46L-CO5204-00 Cross over 2M
46L-DB9200-01 Null modem cable, 2M
46L-EC5200-00 Ethernet cat.5 cable, 2M
46L-IPS200-00 KB/MS cable, 15CM
46L-IUSB2B-00 USB Cable, 25CM
46L-IVGA01-00 VGA Cable, 20CM
46L-RJDB91-00 RJ-45 to DB-9 Cable, 2M
