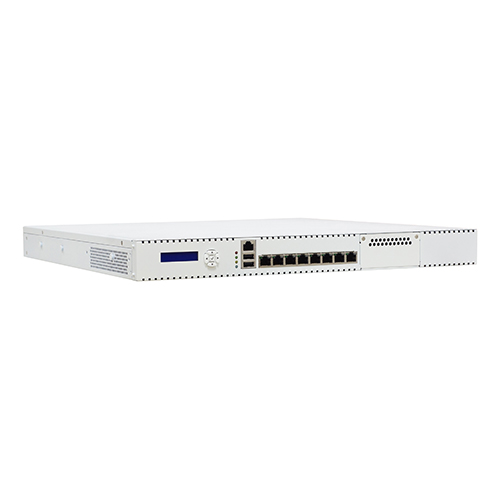

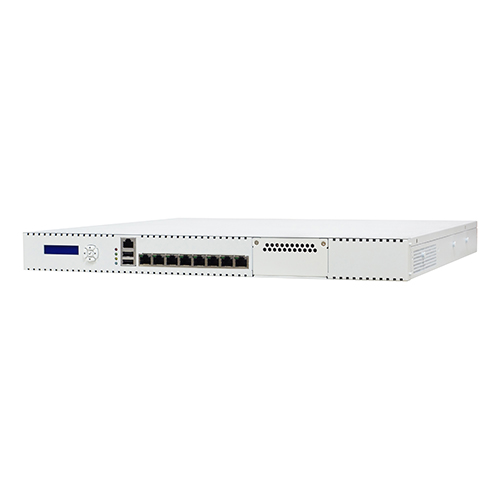

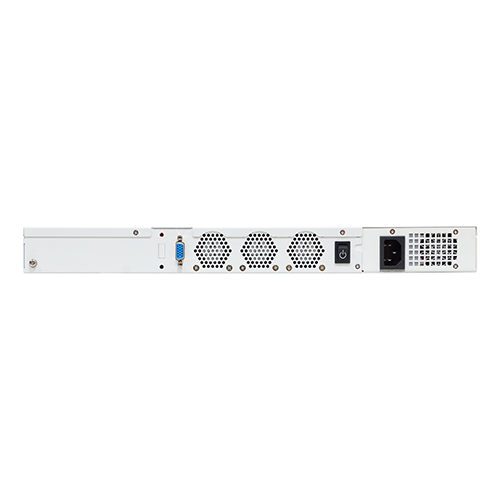

SCB-1723

1U Rack-Mount network appliance, Intel 8/9th Core i7/i5/i3 (Coffee Lake-S) processor and Intel® H310 PCH, support DDR4 up to 32GB, 2x 2.5" SATA3.0 HDD/SSD, 2x USB 2.0, 8x GbE Copper ports, 1x NIC, 1x Console

Overview
Specifications
Download
Options
Key features
  • Support Intel 8/9th Core i7/i5/i3 (Coffee Lake-S) processor series processor, LGA 1151
  • 2 channel DDR4 2133 MHz un-buffered / Non-ECC memory, max support 32GB
  • 8x GbE Copper ports
  • Support 1x NIC
  • 2x 2.5" SATA3.0 HDD / SSD
Status : available

1U Rack-Mount Network appliance Intel 8/9th Core i7/i5/i3 (Coffee Lake-S) processor and Intel® H310 PCH, support DDR4 up to 32GB, 2x 2.5" SATA3.0 HDD/SSD, 2x USB 2.0, 8x GbE Copper ports, 1x NIC, 1x Console

Specifications
Processor System
CPU
Support Intel 8/9th Core i7/i5/i3 (Coffee Lake-S) processors, LGA 1151
Chipset
Intel® H310 PCH
BIOS
AMI® UEFI BIOS
Memory
Technology
Un-buffered / Non-ECC DDR4 2133MHz memory
Capacity
UP to 32GB with 2 DIMM socket
I/O
USB
2 x external USB 2.0 port
Serial
1 x RJ45 Console port (COM1)
1 x internal 5x2 pin header (COM2)
Ethernet
GbE Ethernet
8x RJ45 GbE ports
Storage
SATA
2x 2.5" or 1x 2.5" + 1x 3.5" SATA3.0 HDD / SSD
Power Supply
Watt
1U 250W ATX Power Supply
Option: 1U Redundant 300W ATX Power Supply
Mechanical and Environment
Form Factor
1U rack-mount
LCD Module
1x 16x2 LCM
Keypad
5x buttons keypad
LED
1x Status LED (Yellow via programmable GPIO)
1x HDD LED (Red)
1x Power LED (Green)
Dimension (W x D x H)
440mm (W) x 360mm (D) x 44mm (H)
(17.3”W x 14.2”D x 1.73”H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
5kg
Certification
CE/FCC
