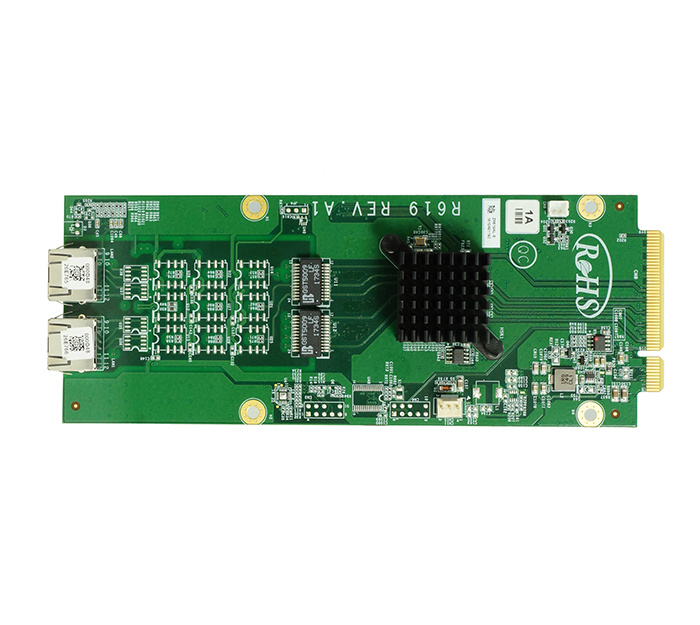

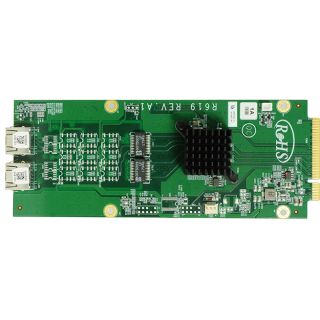

AEWIN R619 Network Expansion Module is built upon the venerable Intel® I350-AM2 chipset, featuring 2x 1GbE RJ45 ports. Available with 1 P air Bypass port s to fit into different networking requirements. SR-IOV functionality is enabled to offer DMA access for virtual machines.
平台
形式因素
AEWIN Expansion Module
特徵
VMDq, SR-IOV
以太网端口
2x 1GbE RJ45 Ports
巴士类型
PCIe Gen 2 x8
Platform
LAN 控制器
1x Intel® I350-AM2
LAN 交换机
-
Bypass
1 Pair Gen 3 Bypass(optional)
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 314g
Weight(without tray): 124g
Weight(with tray): 314g
Weight(without tray): 124g
环境
运营环境
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
储存环境
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS 支援
Windows, Linux, FreeBSD
订单资讯
R619A : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, Ports Sequence Right to Left
R619AL : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, Ports Sequence Left to Right
R619B : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, 1 Pair LAN Bypass, Ports Sequence Right to Left
R619BL : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, 1 Pair LAN Bypass, Ports Sequence Left to Right
R619AL : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, Ports Sequence Left to Right
R619B : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, 1 Pair LAN Bypass, Ports Sequence Right to Left
R619BL : 1x Intel® I350-AM2, 2x 1GbE RJ45 Copper, 1 Pair LAN Bypass, Ports Sequence Left to Right
