平台
形式因素

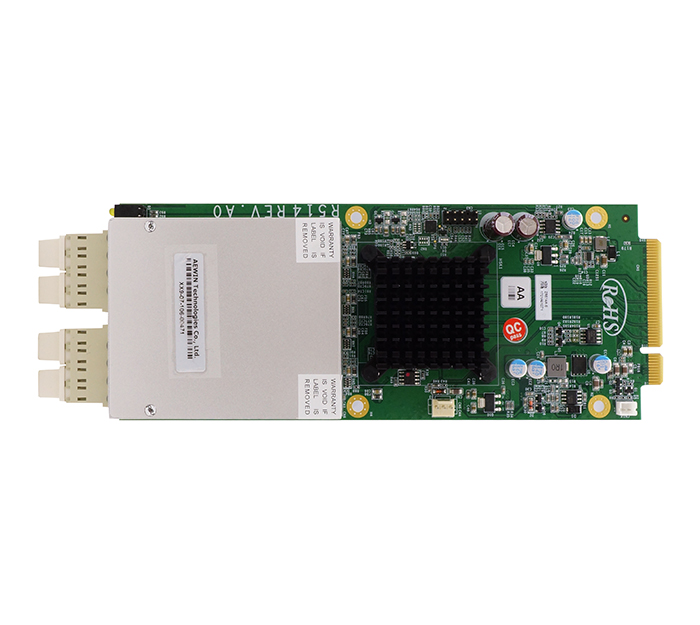

AEWIN Expansion Module
特徵
VMDq, SR-IOV
以太网端口
4x 1GbE SFP Ports
巴士类型
PCIe Gen 2 x8
Platform
LAN 控制器
1x Intel® I350-AM4
LAN 交换机
-
Bypass
2 Pairs Gen 3 Bypass
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 343g
Weight(without tray): 153g
Weight(with tray): 343g
Weight(without tray): 153g
环境
运营环境
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
储存环境
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS 支援
Windows, Linux, FreeBSD
订单资讯
R514A : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass with Multi-mode Transceiver, Ports Sequence Right to Left
R514AL : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass with Multi-mode Transceiver, Ports Sequence Left to Right
R514B : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass with Single-mode Transceiver(20KM), Ports Sequence Right to Left
R514AL : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass with Multi-mode Transceiver, Ports Sequence Left to Right
R514B : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass with Single-mode Transceiver(20KM), Ports Sequence Right to Left
